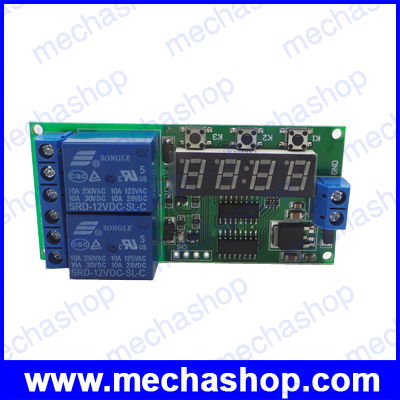

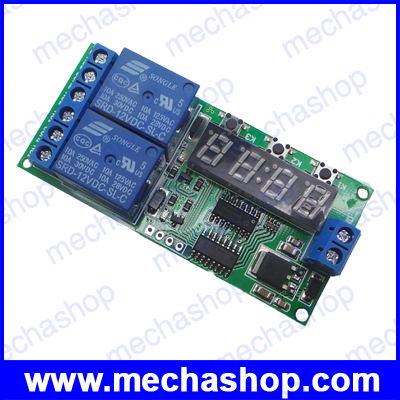

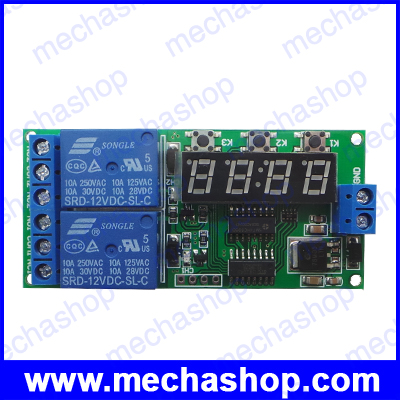

ตัวหน่วงเวลา ดีเลย์ทามเมอร์ ตัวตั้งเวลา เครื่องตั้งเวลา DC 12V 2CH Delay Relay Cycle Timer Switch Module 1-9999s for Motor LED Smart Home

>> เช็คสต๊อคสินค้า <<

Typical applications

1 Motor reversing control circuit,Power supply is DC 12V ,Wiring diagram below. “LOAD” may be DC 1-110V OR 85-265V AC/DC Motor

2 Live wire and Netural wire control circuit,Power supply is DC 12V ,Wiring diagram below. “LOAD” may be AC 85-265V equipment

Package inlcuded:

• PCS DC 12V 2 channel  delay relay module

Description:



• DC 12V 2 channels 0-9999 seconds multi-function delay relay board
• 9 kinds of functions can be switched
• Products can set the delay time and Function.After setting up, power-up setting value is previous setting delay time and Function as we set last time  (power-down memory function);
• Size: 75mm × 35mm x 20mm
• Weight : 35.5g
• Relay maximum load capacity: DC 1-110V/6A; AC 85-250V/5A

User Manua:

• Noun resolved:
• COM : Common terminal
• NO: Normal open
• NC: Normally Close
• Relay close: COM connect NO,COM disconnect NC
• Relay open : COM disconnect NO,COM connect NC



Function mode :

F1 After power on. Relay 1 close,relay 2 open, delay time is T1. Then relay 1 open,relay 2 is close. Delay time is T2.Relay 1 close, relay 2 open, delay time is T1.Such repeated cycles of action…(for Motor reversing)

F2 After power on.Relay 1 close, relay 2 close, delay time is T1. Then relay 1 open, relay 2 is open. Delay time is T2 . Relay 1 close , relay 2 close, delay time is T1. Such repeated cycles of action…

F3 After power on . Relay 1 close , delay time is T1. Then relay 1 open , Delay time is T2 . Relay 1 close,delay time is T1. Such repeated cycles of action… ,Relay 2 never work .

F4 After power on . Relay 2 open , delay time is T1. Then relay 2 close, Delay time is T2 . Relay 2 close , delay time is T1. Such repeated cycles of action… ,Relay 1 never work .

F5 After power on . Relay1 and relay 2 close, delay time is T1.Relay1 and relay 2 open (control Live wire and netural wire)

F6 After power on . Relay 1 close , delay time is T1. Then relay 1 open,Relay 2 never work .

F7 After power on . Relay 2 no action, delay time is T1. Then relay 2 close, Relay 1 never work .

F8 After power on. Relay 1 and Relay 2 both close, delay time is T1. Then relay 1 open,Delay time is T2, relay 2 open.

F9 After power on . Relay 1 and Relay 2 both open , delay time is T1. Then relay 1 close, Delay time is T2, relay 2 close.

•  Keep pressing K1, press K2 to switch Function mode
• F5 F6 F7 mode has only 1 delay time counter (T1), the other mode has two delay time counters (T1 T2); Keep pressing K1 ,press K3, switch T1 T2 counter .

• Press K2, switching 4 bits of delay time counter(0000~9999S),the selected bit flash , press K3 to adjusted counter . Repeat to switch the rest bits .
• After switching all bits ,then press K2 exit adjustable delay mode; or press K1, exit adjustable delay mode; or wait 10 seconds exit adjustment mode

• Keep pressing the K3 for 5 seconds , the digital display Turn off. Keep pressing K3 5 second more (or re-power), the digital display Turn on .
• F5 F6 F7 F8 F9 mode, the delay counter is completed, digital display Turn off, enter a low-power mode, press K1, exit the low-power mode
