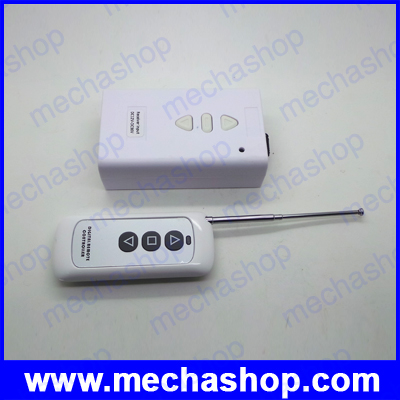

รีโมทควบคุมลิเนียร์มอเตอร์ ดีซีมอเตอร์ กลับทางหมุนได้ DC 12V 24V 36V Motor Remote Control Switch 2CH Motor Up Down Stop Forwards Receiver Wireless Switch

รหัส DCM045
ราคา 1,150 บาท

DCM045

มีสินค้าอยู่ 3

รายละเอียดสินค้า

รีโมทควบคุมลิเนียร์มอเตอร์ ดีซีมอเตอร์ กลับทางหมุนได้ DC 12V 24V 36V Motor Remote Control Switch 2CH Motor Up Down Stop Forwards Receiver Wireless Switch

>> เช็คสต๊อคสินค้า <<

Specification

  • Working Voltage: DC 12V-36V
    (AC&DC both are ok. Wide working voltage from 12V to 36V(12V 24V 36V)
  • Working Current: 48ma
  • Quiescent current:16ma
  • Max Load: 10A Relay ( have better load less than 5A (60W)
  • Size:100*60*30mm
  • Function: Receiver Manual Button Control & Wire External Button (without transmitter)

Wire the Normally Open Limited to the External Button Pin ( U–S–D–GND) make your motor Forwards Reverse Cycle

  • Original State OFF, (Suddenly, the electricity was cut off, then comes again, the State still is OFF, you need manual turn it ON)
  • Out State: Momentary Toggle Latched Adjusted by the Jumper on the Receiver,
    ( we ship default as Latched, if you need use Momentary to change the Jumper on the Receiver ,Notice, please don’t use Toggle)
  • Momentary———-Jumper on “1&2”
  • Latched———–Jumper on “3&4”
  • Momentary ————-
        – Press button”Up”, the Motor Forward, Release is Stop.
        – Press Button “Down”, the Motor Reverse, Release is Stop.
    Latched——————
        – Press button “Up”, the Motor Forward, Press Button “Stop” is stop.
        – Press Button “Up”, the Motor Reverse, Press Button”Stop” is stop
  • If you don’t need wire the Limited Switch, you need connect the UP Down and COM with a Line, we have connect it before we ship out ,if you need use it take away the line that is ok.
  • When the receiver output state is “Latched”, we have set it 0.5s time delay for forwards and reverse, it is the Protection function.



รับประกันสินค้า 1 เดือน

ข้อมูลเพิ่มเติม

น้ำหนัก 0.250 kg
