บอร์ดควบคุมผ่านเน็ตเวิร์ค LPSECURITY 16 Channel LAN WAN WiFi Relay board controller /WiFi Relay Module/wireless remote control smart home relay switch

>> เช็คสต๊อคสินค้า <<

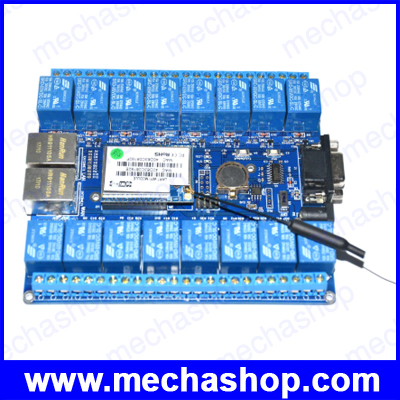

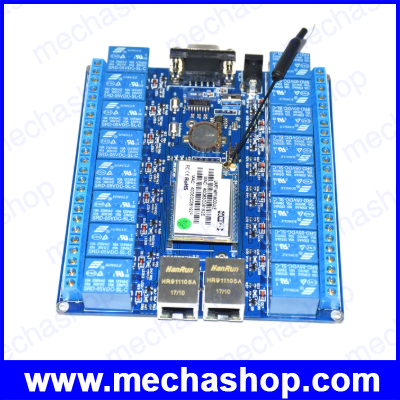

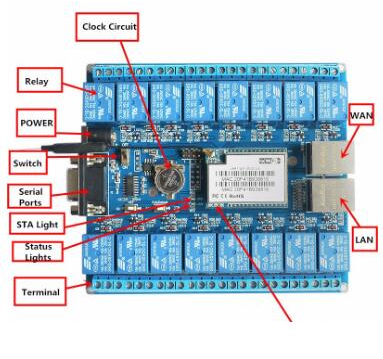

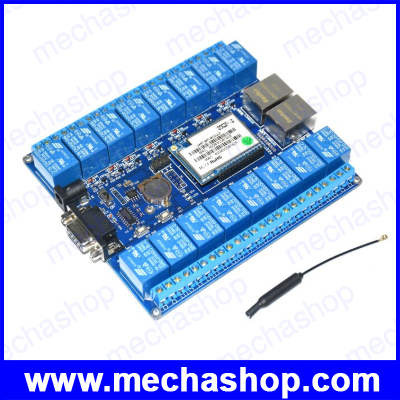

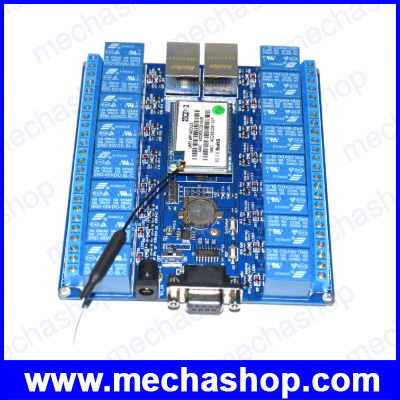

HLK-SW16 16 Channel Android/Smart Phone CWiFi Relay /WiFi Relay Module

No manual and no software included in the goods package, and it will be sent by email only. Welcome to check the video to see the basics.

Battery is explosive and it is forbidden by the Courier; battery will be taken away before shipment and when the buyer gets the goods, please put a battery CR1220 3V into the board

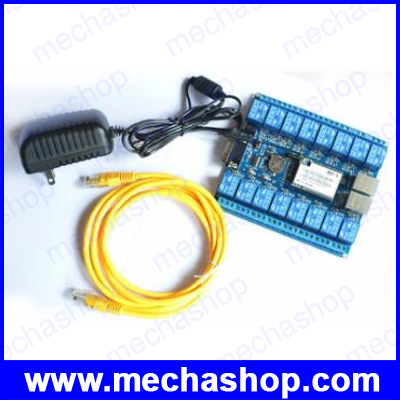

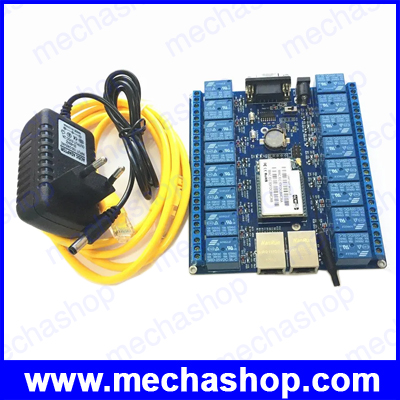

Notice: The item include one HLK-RM04-E module with p2p function, one 10cm flexible antenna, one 16 channels test board with one RS232 serial port two RJ45 ports, one 5V 2A power supply and one ethernet cable.

Specification:

1. Smart size:115*130*19mm
2. Low power wifi module
3. Support 802.11b/g/n protocol
4. Support wireless security WEP/WPA-PSK/WPA2-PSK/TKIP/AES
5. Need no driver, just use as the normal serial port for users' PC
6. Support AP/STA
7. Support TCP Server/TCP Client/UDP Server/UDP Client work mode

Compared with the traditional way( dynamic domain name plus router port mapping), it has incomparable superiority, eliminating the need for users to apply for a dynamic domain name, make frequent operations, such as port mapping on the router, so that equipment can achieve plug and play result



Features:

• Full function of wireless router:Support 5 types of work mode: AP, Client, Repeater, Bridge, Router

AP mode:

• Default work mode. In this mode, the device works as a wireless access point, support for plug and play , and no configuration needed.

Router mode:

• In this mode, the device is equivalent to a wireless router, wired interfaces can be used as WAN, wireless used as LAN. Multiple wireless clients can share a broadband line to search the Internet.

Repeater mode:

• Use the radio relay function of the device, achieve the radio signal repeat and amplified, and form a new radio coverage area, ultimately attain the purpose of extending the coverage of the wireless network.

Bridge mode:

• With the Bridging function of equipment, firstly, the module RM04 establish a wireless connection with the front end wireless network itself ,then sending the wireless signal, at the same time, form a new wireless coverage, signal weak and signal blind spot can be solved effectively.

Client mode:

• The AP to work in this mode for the main AP is a wireless client, the equivalent of a wireless network card.

รับประกันสินค้า 7 วัน



ข้อมูลเพิ่มเติม

น้ำหนัก	0.600 kg
