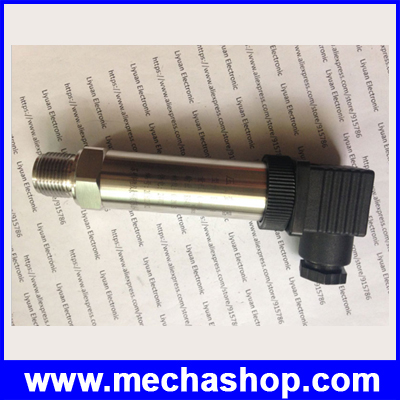

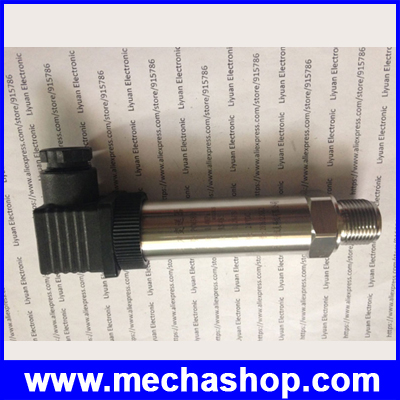

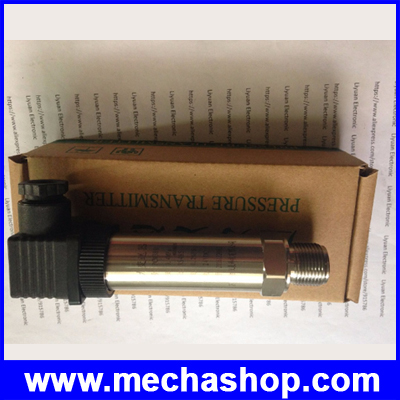

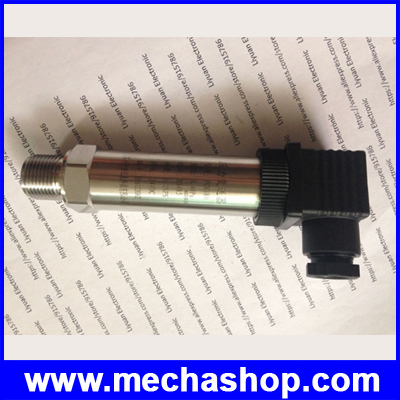

เซนเซอร์วัดแรงดัน วัดแรงดันในท่อ 0-40Mpa RS485 Pressure Transmitter sensor / standard MODBUS RTU /stainless steel diffused silicon (สินค้า Pre-Order)
>> แจ้งความต้องการสินค้า <<
RS485 level pressure transmitter is a fully sealed submersible diffused silicon level measurement instruments. The transmitter selection through long-term stability and reliability tests piezoresistive OEM pressure sensors and high-precision transducer mount a special circuit consisting of a stainless steel housing. Integrated structure and standardized RS485 signal for field use and provides a convenient automated control. Special cable to connect the housing seal, long-term investment and transmitter materials of construction compatible liquid used.
RS485 transmitter with a small size, light weight, long-term stability, suitable for petroleum, chemical, pharmaceutical, metallurgical, power plants, mining, urban water supply and drainage, hydrology exploration and other areas or water level measurement and control.
Product parameters:
- product name: Prassure Transmitter
- Power supply: DC 24V
- Measurement range: 0-40Mpa
- Accuracy: 0.5%F.S
- Stability: 0.1%F.S
- Output: RS485
- Operating temperature: -20 to 70C
- Storage temperature: -20 to 120C
- Overload limit: 1.5 times rated range
- Isolation diaphragm: 316L Stainless steel
- Installation interface: M20 x 1.5
- Appilcable medium: Water , Oil ,Gas ,Liquid
- ขา 1: 24V+
- ขา 2: 24V-
- ขา 3: RS485 +
- Gnd: RS485-
รับประกันสินค้า 3 เดือน
