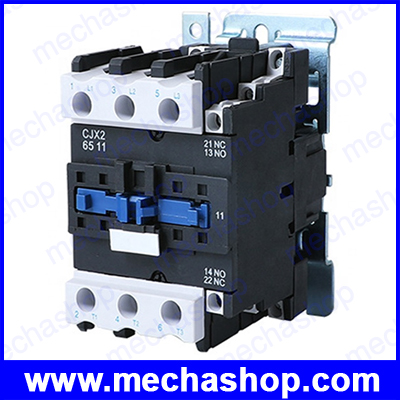

แมกเนติกคอนแทคเตอร์ Motor Control AC Contactor AC-3 37KW 65A 3 Pole 380V Coil CJX2-6511

รหัส MSP027
ราคา 950 บาท

MSP027

มีสินค้าอยู่ 6

รหัสสินค้า: MSP027 หมวดหมู่: ป้ายกำกับ: , , , , ,

รายละเอียดสินค้า

แมกเนติกคอนแทคเตอร์ Motor Control AC Contactor AC-3 37KW 65A 3 Pole 380V Coil CJX2-6511

>> เช็คสต๊อคสินค้า <<



AC Contactor is suitable for long-distance making and breaking circuit, frequently starting and controlling the AC motors.

CJX2-D series AC Contactor is suitable for using in the circuits up to the rated voltage 660VAC 50Hz or 60Hz, rated current up to 620A, for making, breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The products comply with IEC60947-4.

Specifications:

  • Product Name: AC Contactor
  • Model Number: CJX2-6511
  • Rated Insulation Voltage(Ui): 660V
  • Conventional Thermal Current(Ith): 80A
  • Rated Coil Voltage: 380V, 50-60Hz
  • Rated working current: 65A
  • AC-3

    • Ue(V)    220 / 380 / 660
    • Pe(kW) 18.5 /  30 /  37
  • Number of Contact: 3P+NO+NC

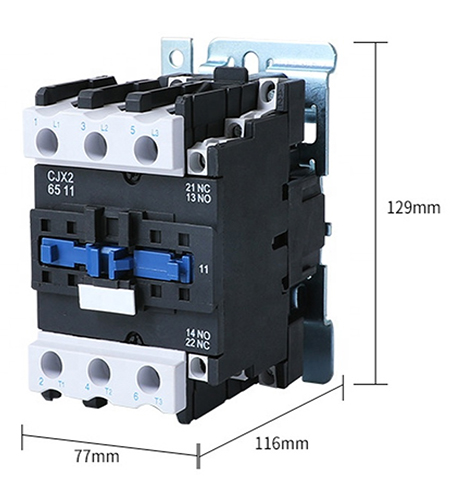

  • Overall Size(Approx.): 129 x 116 x 77mm
  • Material: Plastic, Metal, Electrical Parts
  • Main Color: Black, White, Blue
  • Net Weight: 1200g
  • Package Content: 1 x AC Contactor



Note: Coil Rated Voltage is AC 380V, please pay attention to the voltage before odering to make sure the item can works successfully in your area.
