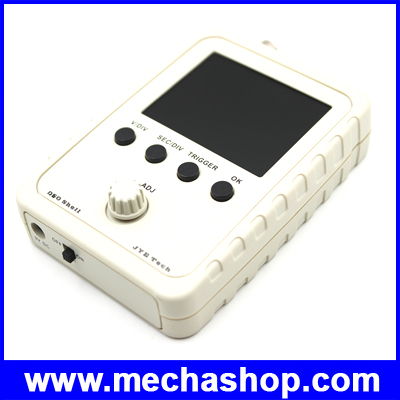

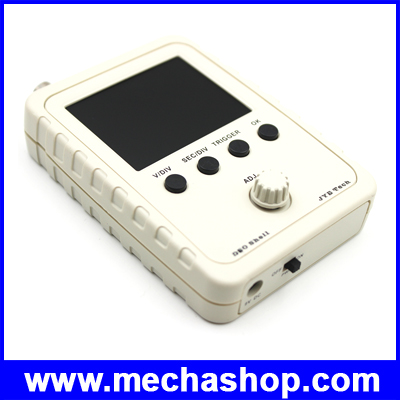

ดิจิตอลออสซิโลสโคป Tech DS0150 15001K DSO-SHELL (DSO150) ชุดคิท ยังไม่ได้บัดกรี DIY Digital Oscilloscope Kit With Housing case
>> เช็คสต๊อคสินค้า <<
This DIY digital oscilloscope kit adopts ARM Cortex-M3 processor and with 2.4-inch TFT screen and protective case. It's easy and reliable for circuit operation. It can display waveform parameters, such as frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.
Features:
- Adopt ARM Cortex-M3 processor (STM32F103C8), and include a 2.4-inch color TFT display screen.
- Used for secondary development on the basis of this kit, for example, it can be changed to Millivoltmeter, data loggers.
- Come with instructions, easy to install and operate.
- With Auto/Normal/Single trigger modes, easy to capture the moment waveform.
- Available rising or falling edge trigger.
- Observable previous waveform before trigger(negative delay).
- Can freeze waveform display at any time(HOLD function).
- With waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.
- Waveform storage function: will not lose the waveform after power off.
- Short-circuit and open-circuit detection: can help the user find out the soldering error.
- TFT controller recognition function.
- The SMD has been soldered, more suitable for electronic beginner.
Specifications:
- Maximum Real-time Sampling Rate: 1MSa/s
- Analog Bandwidth: 0-200KHz
- Sensitivity Range: 5mV/div-20mV/idv
- Maximum Input Voltage: 50Vpk (1X probe)
- Input Impedance: 1M ohms/20pF
- Accuracy: 12 Bits
- Record Length: 1024 points
- Coupling Modes: DC / AC / GND
- Time Base Range: 500s/Div – 10us / Div
- Trigger Modes: Auto, Normal, and Single
- Trigger Position: Center of Buffer
- Supply Voltage: DC 9V(8-10V)
- Current Consumption:~120mA @ 9V
- Main Board Size: 94 * 65mm / 3.7 * 2.56in
- Analog Board Size: 65 * 47mm / 2.56 * 1.85in
- Screen Size: 52 * 40mm / 2 * 1.57in
- Package Size: 14.5 * 10 * 3.7cm / 5.7 * 3.94 * 1.45in
- Package Weight: 179g / 6.33oz
Package List:
- 1 * Digital Oscilloscope DIY Kit
- 1 * Probe
- 1 * DIY Case
- 3 * User Manual(English)
