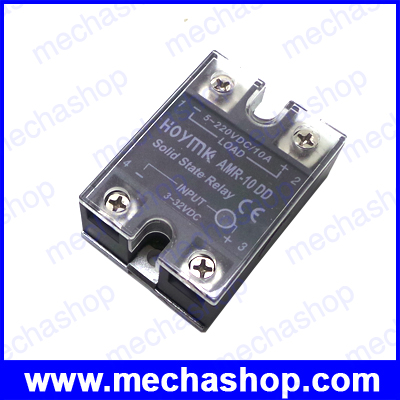

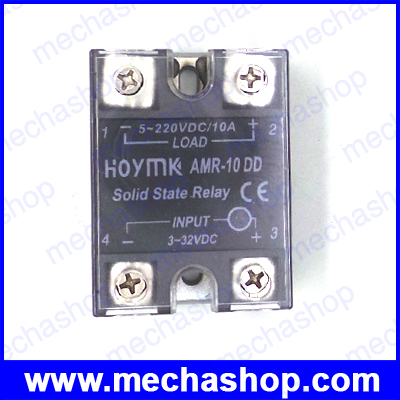

โซลิตสเตทรีเลย์ Solid State Relay Hoymk AMR-10DD DC-DC 10A Actually 3-32V DC to 5-220VDC
>> เช็คสต๊อคสินค้า <<
Product Features:
- TRIAC Output,Zero Voltage Opens, Zero Current Turnoff;
- Optical Isolation between the Input Loop and Output Loop;
- Dielectric Strength 2500V between Input-Output;
- 100% Load Current Aging Test.
This is Solid State Relay AMR-10DD DC-DC 10A
- Control: DC Control DC
- Load Voltage :5-220VDC
- Control Voltage 3-32VDC
- Current DC:3-25mA
- State Leakage Current: 2mA
- State Pressure 1.5VAC
- Off Time 10mS
- Dielectric Withstand Voltage :2500VAC
- Insulation Resistance: 500M /500VDC
- Working Temperature:-30 -+ 75
- Mounting:Bolts
- Indicating:LED
Packing Content:
- 1 x Solid State Relay AMR-10DD
Safety Precautions :
- , Must be used when the load current is higher than 5A is mounted on a heat sink or metal base plate with the corresponding cooling effect , and coated with thermal grease between the SSR Heat bottom mounting surface , 40A above plus fan forced cooling or water .
- , Using the AC inductive load , high transient voltages and inrush current is applied to the output, which may cause the solid state relay conduction or damaged, usually require access at the output voltage with a specific clamping voltage control devices, such as double Zener diode or varistor (MOV). Rated voltage varistor is recommended to take a 1.6-1.9 times ;
- , The control close to the minimum load current is small current load shall load a dummy load resistor in parallel to reduce the leakage current compared to the output of the load high residual voltage.
- , In order to avoid the temperature exceeds the allowable value of solid-state relays , considering the cooling effect of the application should be designed and installed position , only when two or more solid state relays mounted side by side , you should leave appropriate spacing.
- , The parallel between the output may not be more than just the use of solid-state relays , in an attempt to increase the output current. However, output can be used in tandem in order to apply a higher operating voltage.
- , When using more than just a solid state relay when shared control power inputs that can be used in tandem can also be used in parallel .
- , Capacitive load caution this piece , please select the capacitive load dedicated solid state relays.
