เอซีเซอร์โวมอเตอร์ Panasonic MHMF082L1U2M plus MCDLT35SF 750W MINAS A6 Servo motor and driver kit

รหัส ASM004
ราคา 23,000 บาท

ASM004

มีสินค้าอยู่ 1

รหัสสินค้า: ASM004 หมวดหมู่: ป้ายกำกับ: , , , ,

รายละเอียดสินค้า

เอซีเซอร์โวมอเตอร์ Panasonic MHMF082L1U2M plus MCDLT35SF 750W MINAS A6 Servo motor and driver kit


Item list



Introduction to items

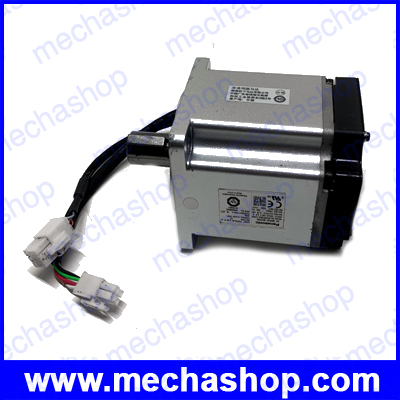

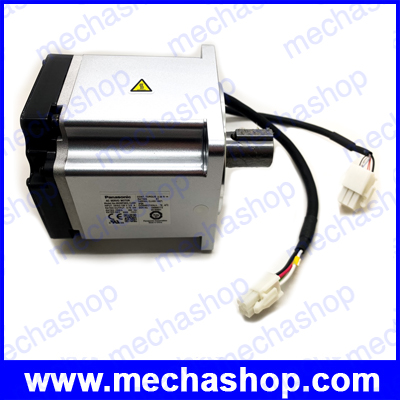

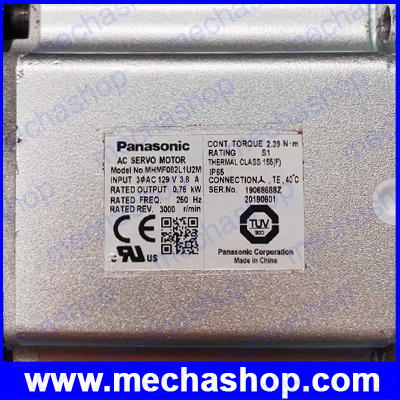

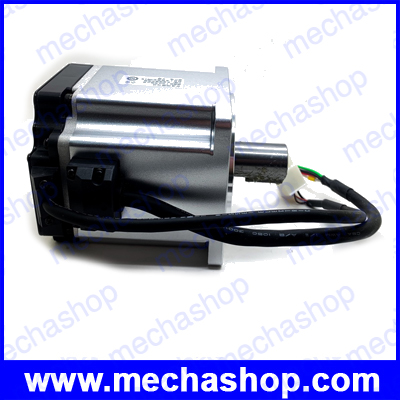

Panasonic AC servo motor MHMF082L1U2M motor

Spec Detail

Item Specifications
Part Number MHMF082L1U2M
Details High inertia, Lead wire type
Family Name MINAS A6
Series MHMF Series
Type High inertia
Special Order Product Special Order Product
Cautions for Special ordering product Please avoid the motor, or equipment containing the motor to be distributed to Japan, or other regions through Japan.
Enclosure IP65
About Enclosure Except rotating portion of output shaft and leadwire end.
Environmental Conditions For more details, please refer to the instruction manual.
Flange sq. dimension 80 mm sq.
Flange sq. dimension (Unit:mm) 80
Motor lead-out configuration Lead wire
Motor encoder connector Lead wire
Power supply capacity (kVA) 1.8
Voltage specifications 200 V
Rated output 750 W
Rated current (A (rms)) 3.8
Holding brake without
Mass (kg) 2.3
Oil seal with
Shaft Key-way, center tap
Rated torque (N ⋅ m) 2.39
Continuous stall torque (N ⋅ m) 2.86
Momentary Max. peak torque (N ⋅ m) 8.36
Max. current (A (o-p)) 18.8
Regenerative brake frequency (times/min) Without option :No limit
With option :No limit
Option (External regenerative resistor) Part No. : DV0P4283
About regenerative brake frequency Please refer to the details of [Motor Specification Description] , Note: 1, and 2.
Rated rotational speed (r/min) 3000
Rated rotational Max. speed (r/min) 6000
Moment of inertia of rotor ( x10-4 kg ⋅ m²) 1.56
Recommended moment of inertia ratio of the load and the rotor 20 times or less
About recommended moment of inertia ratio of the load and the rotor Please refer to the details of [Motor Specification Description] ,Note: 3.
Rotary encoder: specifications 23-bit Absolute/Incremental system
Notice When using a rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder.
Rotary encoder: Resolution 8388608

Permissible load

Item Specifications
During assembly: Radial load P-direction (N) 686
During assembly: Thrust load A-direction (N) 294
During assembly: Thrust load B-direction (N) 392
During operation: Radial load P-direction (N) 392
During operation: Thrust load A, B-direction (N) 147
About permissible load For details, refer to the [Motor Specification Description] “Permissible Load at Output Shaft”.

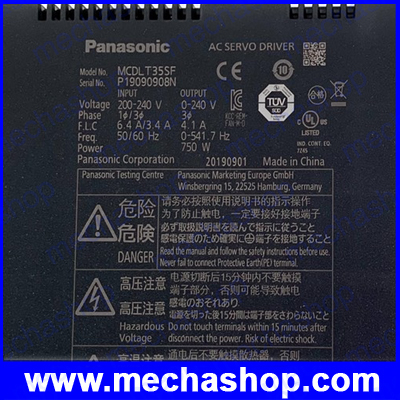

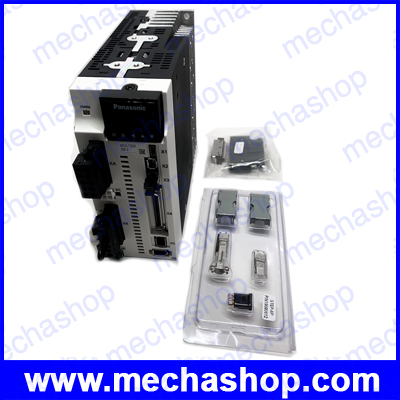

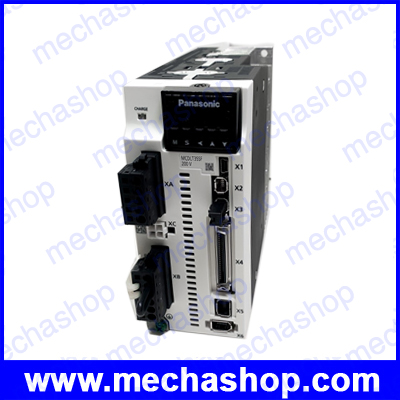

Panasonic AC servo MCDLT35SF driver

Spec Detail

Part Number MCDLT35SF
Details A6SF series
Multifunction type (Pulse
analog
full-closed)
with the safety function
Family Name MINAS A6
Series A6SF series
Type Multifunction type
Frame C-Frame
Frequency response 3.2 kHz
Control method Position control, Velocity control, Torque control, and Full-closed control
Safety Function With the safety function
Supply voltage Single/3-phase 200 V
I/F Classification of type Analog /Pulse, Modbus (RS485 /RS232)
Dimensions (W) (Unit: mm) 65
Dimensions (H) (Unit: mm) 150
Dimensions (D) (Unit: mm) 170
Mass (kg) 1.6
Environment For more details, please refer to the instruction manual.

Basic Specifications

Input power: Main circuit Single/3-phase 200 to 240V +10% -15% 50/60 Hz
Input power: Control circuit Single phase 200 to 240V +10% -15% 50/60 Hz
Encoder feedback 23-bit (8388608 resolution) absolute encoder, 7-wire serial
About Encoder feedback * When using it as an incremental system (not using multiturn data), do not connect the battery for absolute encoder. Parameter Pr. 0.15 must be set to “1” (factory settings).
External scale feedback A/B phase, homing signal differential input. Serial communication is also supported.
Parallel I/O connector:
Control signal Input
General purpose 10 inputs
The function of general-purpose input is selected by parameters.
Parallel I/O connector:
Control signal Output
General purpose 6 output
The function of general-purpose output is selected by parameters.
Parallel I/O connector:
Analog signal Input
3 inputs (16-bit A/D : 1 input, 12-bit A/D : 2 inputs)
Parallel I/O connector:
Analog signal Output
2 outputs (Analog monitor: 2 output)
Parallel I/O connector:
Pulse signal Input
2 inputs (Photo-coupler input, Line receiver input)
Both open collector and line driver interface can be connected.
High speed line driver interface can be connected.
Parallel I/O connector:
Pulse signal Output
4 outputs (Line driver: 3 output, open collector: 1 output)
Line driver output for encoder pulses (A/B/Z signal) or external feedback pulses (EXA/EXB/EXZ signal) open collector output also available for Z or EXZ signal.
Communication function USB, RS232, RS485, Modbus-RTU
Communication function: USB USB interface to connect to computers for parameter setting or status monitoring.
Communication function: RS232 1:1 communication
Communication function: RS485 1: n communication (max 31)
Communication function: Modbus-RTU 1: n communication
Regeneration Built-in regenerative resistor (external resistor is also enabled.)
Control mode Switching among the following 7 mode is enabled,
(1) Position control, (2) Speed control, (3) Torque control, (4) Position/speed control, (5) Position/Torque control, (6) Speed/Torque control, (7) Full-closed control
