รายละเอียดสินค้า

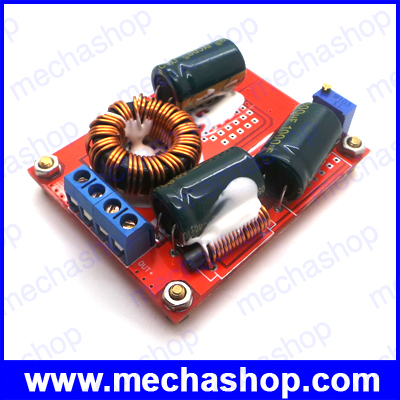

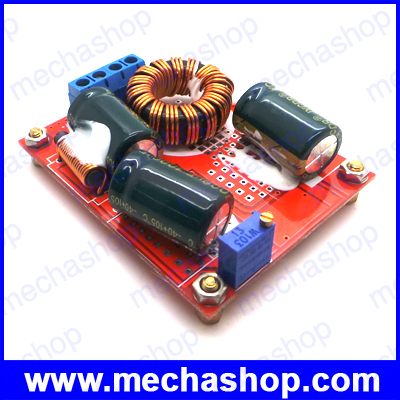

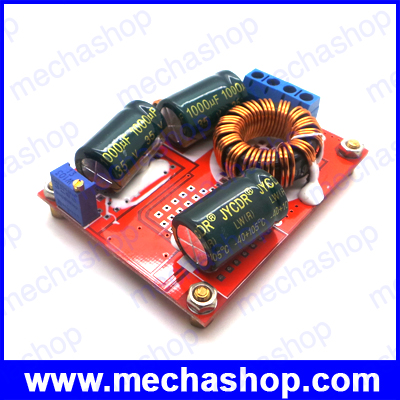

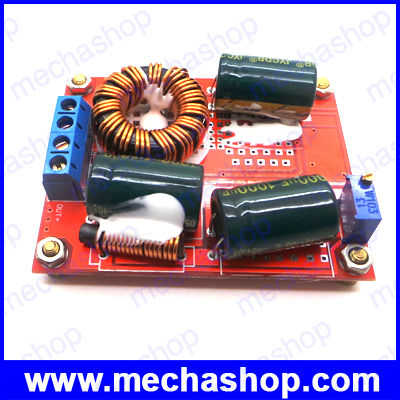

บูตเตอร์แรงดันไฟกระแสตรง DC-DC Boost Voltage Converter 8-32V to 12-35V 72W
Feature:
- Module Name: 72W boost module
- Module properties: non-isolated module
- Input Voltage: 8-32V
- Output voltage :12-35V (adjustable)
- Output current: 3A (12V turn to 24V) ; 5A(12V turn to 19V) (exceed 4A please enhance heat dissipation)
- Output power: 72W (natural cooling), 100W (enhance heat dissipation )
- Output ripple: less than 50mV ,20M bandwidth
- Conversion efficiency: efficiency 92%(12 turn to 24V 3A ), efficiency 93%(12 turn to 19V 3A)
- Operating temperature: Industrial grade -40°c to +85°c (ambient temperature exceeds 40 degrees, reduce power or plus fan)
- Full load temperature rise: 45°c
- No-load current: typical 30mA
- Load Regulation: ± 0.5%
- Voltage Regulation: ± 0.5%
- Dynamic response speed: 5% 200uS
- Short circuit protection: None (please enter retrofitting fuse or protective circuit)
- Input reverse polarity protection: None (If need please install diode at input port )
- Wiring: Terminals, Needn't solder, V-IN input, V-OUT output
- Module size: 65mm x 51mm
Some Applications:
- DIY an output adjustable vehicle power supply, 12V input,14-35V output (adjustable)
- Universal Car Laptop power. 12V Input , the output can be adjusted to the laptop operating voltage
- Boost charger,such as, for the 24V battery
- Power supply for electronic equipment
- Front of a system power supply:when the input voltage is 10-18V and the system board requires about 24V output(high power)
Note:
- Input voltage must be less than the output voltage, for example,when 24V output ,the range of input is 8-24V
- 12V 1 meter wire(1.5 m2),if longer than 1 meter,please use larger wire .
- When needs to work on high-power, high-temperature or plus shell please install a fan, be sure the temperature of module heat sink not exceed 80°c
- 12V battery discharge voltage should not be lower than 10.5V, Li-ion battery used in tandem (single 3.7V) discharge voltage should not be lower than 2.7V
รับประกันสินค้า 7 วัน
