เครื่องวัดความเร็วรอบ เครื่องวัดรอบ มิเตอร์วัดความเร็วรอบ เลเซอร์วัดรอบ New DT2236B 2in1 Digital Laser Photo Contact Tachometer RPM (Made in Taiwan)

รหัส DTM012
ราคา 1,500 บาท

DTM012

สินค้าหมดแล้ว

แจ้งความต้องการสินค้า
รหัสสินค้า: DTM012 หมวดหมู่:

รายละเอียดสินค้า

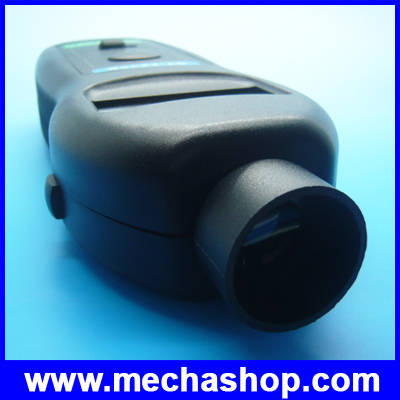

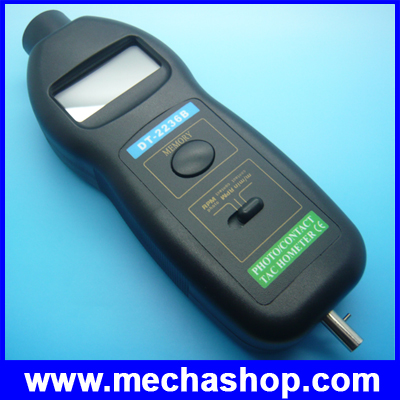

เครื่องวัดความเร็วรอบ เครื่องวัดรอบ มิเตอร์วัดความเร็วรอบ เลเซอร์วัดรอบ New DT2236B 2in1 Digital Laser Photo Contact Tachometer RPM (Made in Taiwan)

>> เช็คสต๊อคสินค้า <<


คุณสมบัติเครื่องวัดความเร็วรอบ:

  • เครื่องวัดความเร็วรอบดิจิตอลเป็นเครื่องมือที่มีคุณภาพสูง
  • วัดความเร็วในการหมุน (รอบต่อนาที) มีช่วงการวัดที่กว้างและมีความละเอียดสูง
  • ระยะเลเซอร์การตรวจวัดความเร็ว ไดไกลถึง 500 มิลลิเมตร (20 นิ้ว)
  • สามารถใช้งานเครื่องวัดความเร็วรอบ 3 โหมด:

    • Laser Photo (non-contact): measure the Rotational Speed (RPM)
    • Rotational Speed (contact): measure the Rotational Speed (RPM)
    • Surface Speed (Contact): measure meter per minutes (m / min)
  • เครื่องวัดวามเร็วรอบนี้มีหลากหลายในการใช้งาน เหมาะสำหรับวัดความเร็วรอบของเครื่องยนต์, มอเตอร์, ล้อหมุนสำหรับเครื่องกลึงโลหะ สายพาน อื่นตามความต้องการทำงาน

Features:

  • Large 5 digits LCD Display
  • Offers 3 measurement options: Photo ,Contact and Surface Speed
  • Use Microcomputer (LSI circuit) and junction laser technique to combine Photo (RPM) and Contact Tachometer (RPM, m/min) into 1 meter
  • Wide Measuring Range (99,999 RPM) with High Resolution
  • Memory storage with Maximum, Minimum and Last Measured value
  • Low battery power indication
  • One push button for Contact and Photo measurement can be switched at anytime
  • New surface speed sensor with flute veils to measure speed and length of wire, cable and rope conveniently

Specifications:

  • หน้าจอแสดงผลขนาด : 5 digits, 47 x 28 mm (1.85' x 1.10' inch) LCD with function annunciation
  • ช่วงระยะวัดความเร็วรอบ:

    • Laser Photo: 2.5 ~ 99,999 RPM (rate/min)
    • Contact: 0.5 ~ 19,999 RPM (rate/min)
    • Surface Speed: 0.05 ~ 1999.9 m/min

Resolution:

  • Laser Photo: 0.1 RPM (2.5 ~ 999.9 RPM) / 1 RPM (over 1,000 RPM)
  • Contact: 0.1 RPM (0.5 ~ 999.9 RPM) / 1 RPM (over 1,000 RPM)
  • Surface Speed: 0.01 m/min (0.05 ~ 99.99 m/min) / 0.1 m/min (over 100 m/min)
  • Accuracy: ±(0.05 % + 1 digit)
  • Sampling Time: 0.8 seconds (over 60 RPM)
  • Test Range Selection: Automatic
  • Memory: Maximum value, Minimum value and Last Measured value
  • Detecting Distance: 50 ~ 500 mm (2 ~ 20 inch) (Laser / Photo)
  • Time base: Quartz Crystal
  • Circuit: Exclusive one-chip of micro-computer LSI circuit
  • DC Power: 4 x 1.5 V AA Batteries (Included)
  • Dimension: approx. 220 (L) x 76 (W) x 30 (D) mm (8.66' x 2.99' x 1.18' inch)
  • Weight: approx. 200 g (7.05 oz) (battery included)

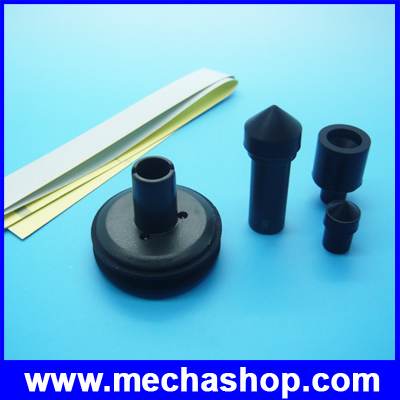

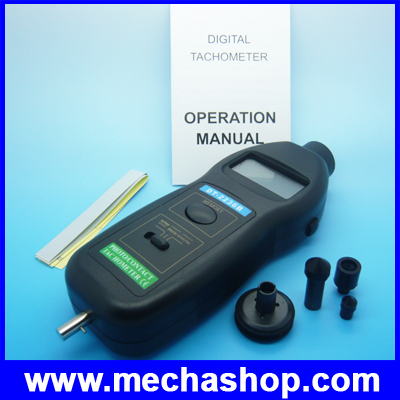

One Set Included:

  • 1 x 2-in-1 Digital Photo & Contact Tachometer
  • 3 x Reflective Tape Mark (total 600 mm)
  • 1 x Contact speed measurement fitting
  • 3 x Contact rotational speed measurement fitting
  • 1 x Instruction Manual
  • Standard Factory Package

รับประกันสินค้า 3 เดือน

ข้อมูลเพิ่มเติม

น้ำหนัก 0.650 kg
ขนาด 22 x 7.6 x 3 in
