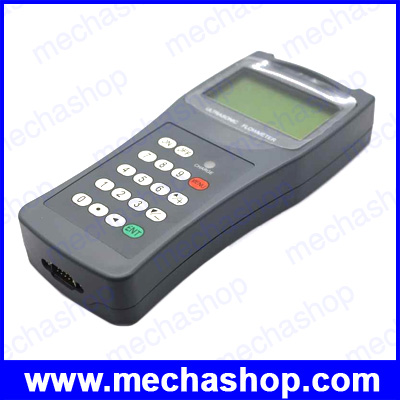

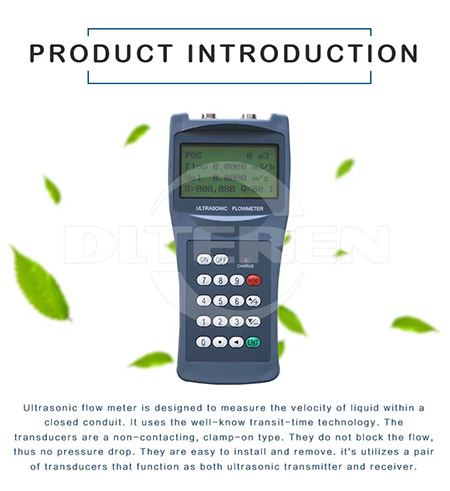

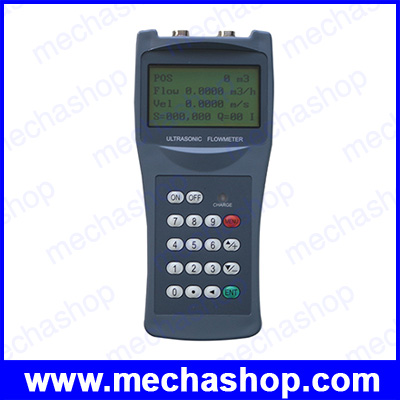

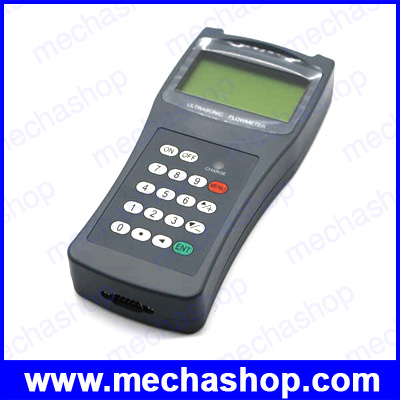

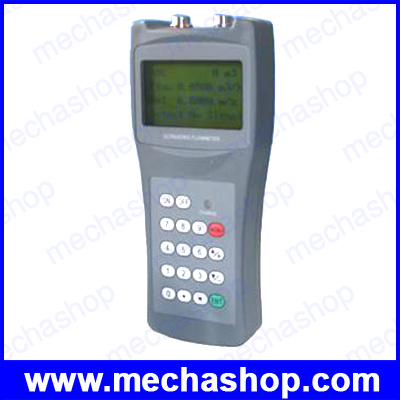

เครื่องวัดอัตราการไหลอัลตราโซนิค Teren-UFM-100H Portable Ultrasonic Trasducer Flow Meter DN15-600mm (สินค้า Pre-Order)

>> แจ้งความต้องการสินค้า <<

Features:

• Bi-directional . Totalizer for net, positive and negative flow.

• High accuracy, better than ±1%

• Wide pipe size range, from 1/2” to 240”(DN15mm~DN6000mm).

• Suitable for all commonly used pipe materials.

• Rechargeable battery for 12 hours of operation.

• Built-in data logger.

• NIST Standard.

• Self-explanatory user interface.Very easy to operate.

• Windows PC software for data download and real-time data display.

• Signal quality tracking and self-adjusting capabilities automatically match transducer to pipe material.

• Light weight (0.84 lbs/380g for the handset).Compact enclosure. Very portable.

• Can also be deployed as a remote RTU for long-term flow monitoring application.

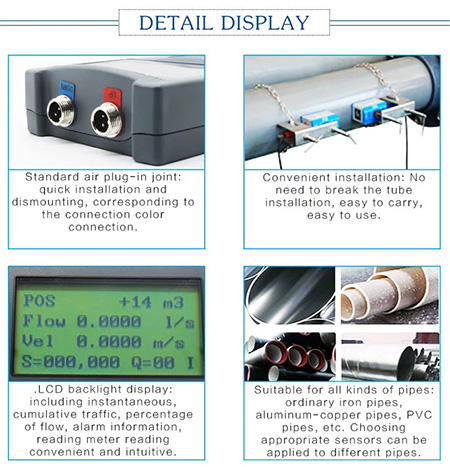

• Easy and economical installation . No need for hole drilling, pipe cutting, etc.

• Noninvasive. No pipe disturbance. No moving parts. No pressure drop . No maintenance.

• Ideal for both clean and opaque liquid flow.

Specifications:

• Model: Teren-UFM-100H
• Liquid Types: Virtually all liquids
• Accuracy: ±1%
• Linearity: 0.5%
• Repeatability: 0.2% or 0.5%
• Velocity: ±32 m/s
• Pipe Size: DN15 ~ 600mm
• Liquid Temperature: 32~320 F (0~160 )
• Output: RS 232/OCT
• Display: 4*16 LCD
• Power supply: 3 AAA Ni-H built-in batteries 100V-240VAC
• Case Size: 3.9″x2.6″x0.8″ (100x66x20mm)
• Handset Weight: 1.2 lbs (514g) with batteries

รับประกันสินค้า 6 เดือน
