เซนเซอร์วัดแรงดันในท่อ Current pressure transmitter pressure sensor G1/4 4-20mA 12-24VDC 0-1.6Mpa

รหัส PUR001
ราคา 1,150 บาท

PUR001

มีสินค้าอยู่ 6

รายละเอียดสินค้า

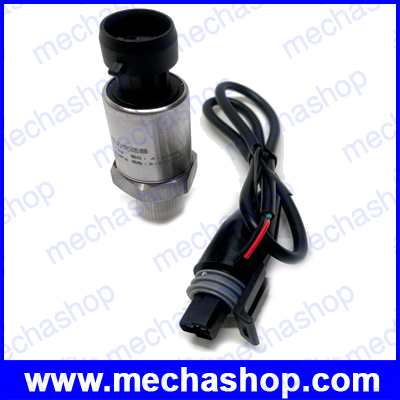

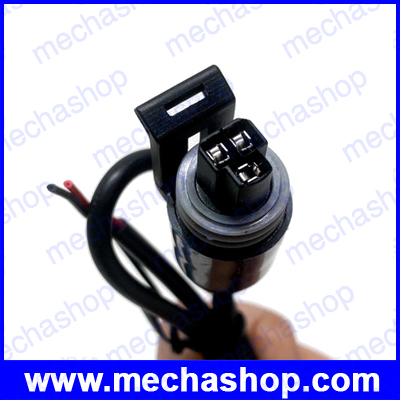

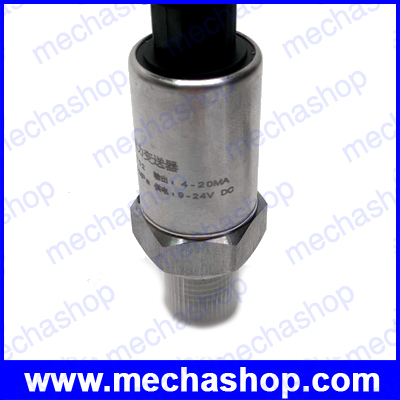

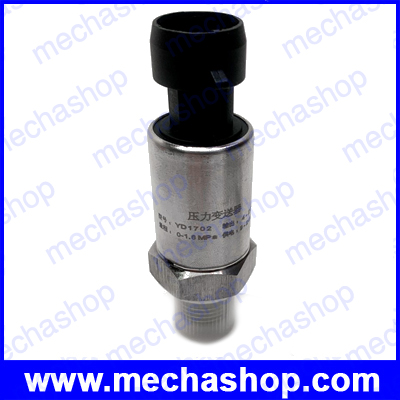

เซนเซอร์วัดแรงดันในท่อ Current pressure transmitter pressure sensor G1/4 4-20mA 12-24VDC 0-1.6Mpa

This series of pressure sensor housing for the 304 stainless steel structure, the use of high-precision diffusion of silicon pressure core as a sensor element, has a strong seismic, impact resistance and long-term stability, easy installation, wide range of features used in liquid or Gas pressure measurement. Colleagues and different thread interface and signal output to meet the needs of our customers.

The series of products are widely used in industrial equipment, constant pressure water supply, medical equipment, process control, etc.

Application areas:

  • Construction machinery, molding machinery, testing machine, online pressure detection, aerospace, hydraulic and pneumatic equipment, constant pressure water supply, medical equipment and other fields.



Charateristics
  1. Precision, stability, good stability
  2. High sensitivity, strong overload capacity
  3. Wide range, easy installation, to meet the needs of different sites……
Technical Parameters
  • Working voltage: 12-24VDC
  • Operating temperature range: -20-85 D Cel
  • Output current: 4-20mA
  • Storage temperature range: -20-85 D Cel
  • Working pressure range: 0-1.6MPa
  • Comprehensive accuracy: + -1.0 %FS
  • Maximum applied pressure: 3.0MPa
  • Insulation strength> = 50M Ω , 500V
  • Destruction pressure: 4.0MPa
  • Sealing class: IP65
  • Load impedance: <= 500 Ω
  • Cycle life: 1,000,000H

รับประกันสินค้า 3 เดือน

ข้อมูลเพิ่มเติม

น้ำหนัก 0.250 kg
