เครื่องพิมพ์3มิติ SLM 125 HL: Best-in-class for speed, flexibility and safety
Best-in-class for speed, flexibility and safety
GAIN GREATER CONTROL AND COST EFFICIENCY
- Increase build speed with patented bi-directional loader movement
- Adaptable for research & development
- Modify system parameters according to your production needs
- Open and flexible software architecture
- Optimized gas recirculation at a laminar flow provides for safe and cost efficient consumption
- Closed-loop powder handling

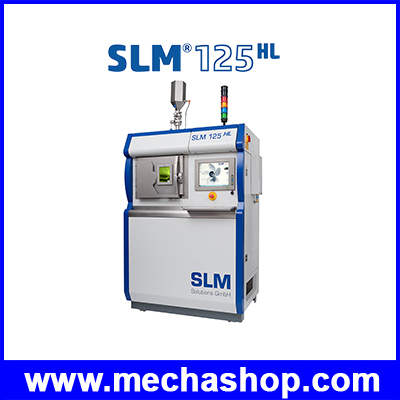

The new compact Selective Laser Melting System SLM® 125HL offers a build envelope of 125 x 125 x 75 (125 optional) mm. Economical and suitable for R&D as well as small lot production environments, the open software architecture and system parameters allows you to make modifications according to your specific production needs.
Achieve fast build speeds from the system’s patented bi-directional loader movement. Internal recirculation of inert gas at laminar flow also provides for safe and cost-efficient gas consumption.
The SLM 125HL is equipped with software for importing CAD / STL data or slice data to configure the processes and component-specific parameters. Achieve greater system control by customizing your own construction processes through the unique, flexible and open software architecture.
The system is able to process most metals (such as Stainless Steels, Tool Steels, Cobalt Chrome, Aluminum, Inconel and Titanium) through a material saving, closed-loop powder handing unit. Changing the metal powder is quick, easy and designed to lower your production costs. Further available options will also increase the versatility and multiple usability of the SLM 125HL.
|Build Envelope Volume in mm (x/y/z)||125 x 125 x 75 (125 optional)|
|Length, z-axis in mm||135|
|Laser Power||400 W, Yb-Fiber Laser|
|Build Speed||25 ccm/h|
|Pract. Layer Thickness||20 – 75 μm|
|Min. Scale Line / Wall Thickness||140 – 160 μm|
|Operational Beam Focus||60/70 – 90 μm|
|Scan Speed||10 m/s|
|Inert Gas Consumption in Operation||Ar/N2, 1.5L/min|
|Inert Gas Consumption Venting||Ar/N2, 1000L @100L/min|
|Compressed Air Requirement||ISO 8573-1, 12.5L/min @ 1.5 bar|
|Dimensions in mm (B x H x T)||1390 x 1900 (2400) x 920|
|Weight||approx. 700 kg|
|E-Connection / Consumption||400 Volt 3NPE, 32 A, 50/60 Hz, 4 KW|
*Subject to technical changes
