ควบคุมดีซีมอเตอร์ DC6-60V 30A Digital Display 0-100% Adjustable Drive Module PWM DC Motor Speed Controller

รหัส DCM060
ราคา 260 บาท

DCM060

มีสินค้าอยู่ 6

รหัสสินค้า: DCM060 หมวดหมู่: ป้ายกำกับ: , , , ,

รายละเอียดสินค้า

ควบคุมดีซีมอเตอร์ DC6-60V 30A Digital Display 0-100% Adjustable Drive Module PWM DC Motor Speed Controller

>> เช็คสต๊อคสินค้า <<

This is a simple and easy-to-use DC motor speed controller of small size, elegant appearance and stable performance. It is made with high quality circuit board which ensures a longer service life. The current can be adjusted from 0A to 30A which is quite convenient to set.

Features:

  • Speed controller ismade with high quality circuit board which ensures a longer service life.
  • This simple and easy-to-use DC motor speed controller has an stable performance.
  • The output current of this motor speed controller can be adjusted from 0A to 30A, and it is simple to set.

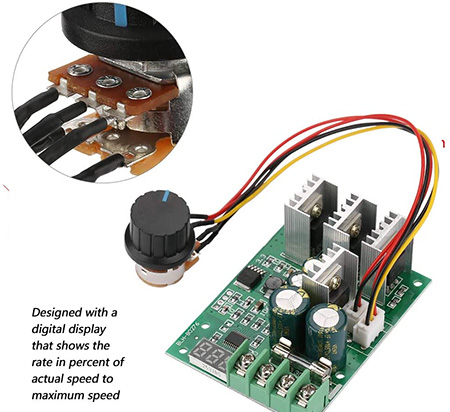

  • Designed with a digital display that shows the rate in percent of actual speed to maximum speed.
  • This motor speed controller uses screw terminals for convenient and quick wiring.

Specifications:

  • Input Voltage:DC6V-60V
  • Output Voltage: Linear with load
  • Output Current: 0A-30A
  • Continuous Current: 20A
  • Speed Range: 0% to 100%
  • RegulationMethod: Potentiometer
  • Regulation Type: Regulating Current
  • Control Frequency: 15KHz
  • Wiring Type: Screw terminal
  • Rotary Knob Wire Length: 19cm / 7.48″

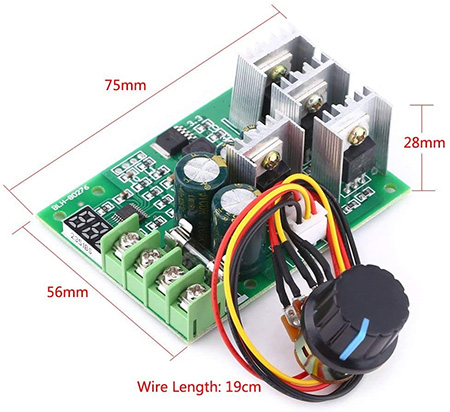

  • Size: 75 x 56 x 28mm / 2.95 x 2.2 x 1.1″

Package Includes:

  • 1 xSpeed Controller

รับประกันสินค้า 1 เดือน

ข้อมูลเพิ่มเติม

น้ำหนัก 0.200 kg
