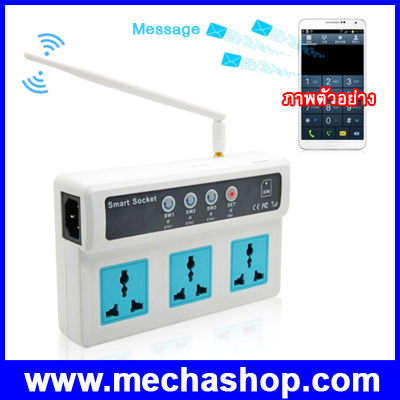

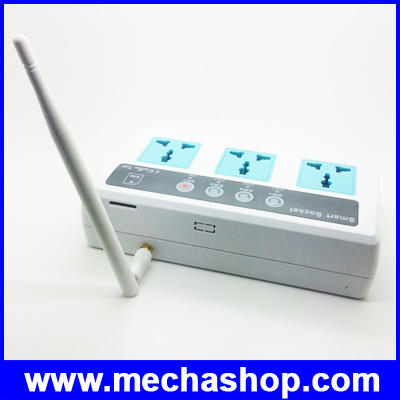

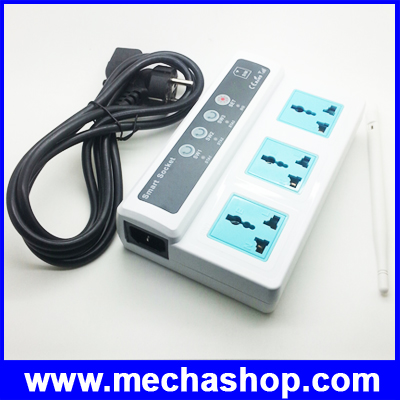

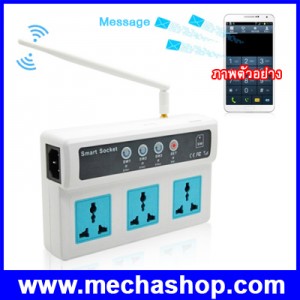

ปลั๊กเสียบ3ช่อง อุปกรณ์สั่งงานผ่านโทรศัพท์มือถือ Mobile Phone GSM Remote Control 3 Socket Power Outlet
สั่งงานผ่านโทรศัพท์ สามารถสั่งปิดเปิด ผ่านโทรศัพท์ ให้เปิดปิดปลั๊กไฟ นำไปใช้งานได้หลากหลายตามความต้องการ
สั่งงานอุปกรณ์ได้ 3ช่อง ไฟ220โวลต์ 10แอมป์
สั่งการทำงานด้วยการโทร และ SMS
ข้อมูลปลั๊กเสียบ สั่งงานผ่านโทรศัพท์มือถือ:
รองรับซิม : GSM 900-1800MHz (ไม่รองรับซิม 3G หรือ CDMA )
Rated Current: 10A
Rated Voltage: 110-220V
Rated Power : 2200W
Power Outlet : 3 Socket
Setup and operation:
A: Basic setup and operation.

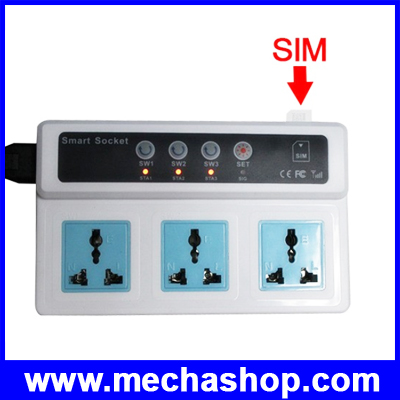

1. Install SIM card Installed your SIM card before power on, non-installed SIM card after power on!A short initialization time (30 seconds) after power on, related operations after initialization. GSM switch is disconnected by default.
2. Waiting for SIM card to connect the GSM network (according to local operators and signal level, usually about 1 minute to get into the network), and observe the SIG lights on the panel (the start is 1 second flash), when flash becomes 4 seconds, the proof has entered the GSM network, Then you can set and control the associated operation.
3. Set Password Must set up the user password first, GSM switch initial password is: 000000. Set Password command format: “SN + 6 old password + NEW + 6 new password. ” For example, customers want set their passwords to : “123456”, then he should edit the message content: “SN0000NEW123456” issued to GSM switch, if you set successfully, you will receive the message: “NEW SN SETOK NEW SN IS 123456 (New password). “The password with the power-down memory function. (Only support 0-9 Arabic numbers, otherwise it will prompt an error.)
4. Set master number GSMSW-A1 owners can set up 10 groups of master numbers, The seting format is: “SN +****(password) + SET + master numbers”,send to the number of GSM switch, you can set the master numbers, such as the user's password is 1234, trying to set 13788889999 to master number, and then edit the message content: “SN1234SET13788889999” issued to GSM switch, if successfully,you will receive a message: “13788889999SETOK”. Only the master number can control the outlet by dialing, when the master number dial number of GSM switch, the switch status will change, and then hang up automatically after one second, does not produce any cost. master numbers with a power-down memory function.
B: SMS Control (COM order, ON order, OFF order)
1. SN+6 passwords+COM+three socket state mark (For example: SN000000COMNFN, control SW1 ON, SW2 OFF, SW3 ON)
2. ON order control 3 switch connected at the same time: SN+6 passwords+ON
3. OFF order control 3 switch disconnected at the same time: SN+6 passwords+OFF
4. Check command: check the status of the socket: SN+6 passwords+CHECK
C: Telephone Control:
1. Setting 3 sockets ON: SW1: 1+* key SW2: 2+* key SW3: 3+* key
2. Setting 3 sockets OFF: SW1: 1+# key SW2: 2+# key SW3: 3+# key
D: Switch button control: through the keys of SW1 to SW3, can reversal the status of the plug of SW1 to SW3.
***ประกันสินค้า 3เดือน
