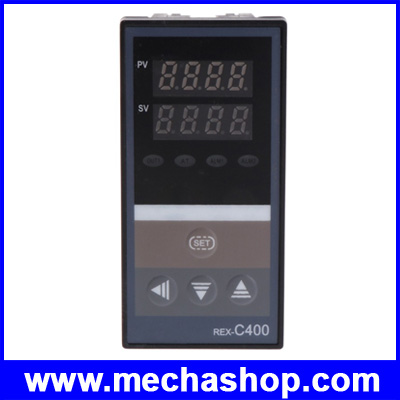

เครื่องควบคุมอุณหภูมิ PID Digital Temperature Controller REX-C400 Universal Input SSR Output Vertical for Automatic Packing Machine Thermostat

รหัส TPC033
ราคา 490 บาท

TPC033

มีสินค้าอยู่ 6

รหัสสินค้า: TPC033 หมวดหมู่: ป้ายกำกับ: , , , ,

รายละเอียดสินค้า

เครื่องควบคุมอุณหภูมิ PID Digital Temperature Controller REX-C400 Universal Input SSR Output Vertical for Automatic Packing Machine Thermostat t
  • Input: K type Thermocouple
  • Output: SSR
  • Alarm:One
  • Power: 220VAC

Features:

  • Product Display for both set Dual temperature and process temperature
  • Size, 1/8 DIN 48*95mm
  • Universal input, support 10 different types of thermocouples and RTD inputs by customers selected at panels.
  • Function can find the Auto-tune best PID parameter automatically
  • Displays temperature in Celsius
  • Digits LED display Four can go up to “9999”
  • Be powered by either Can DC or AC power source
  • It for Kiln Furnace, Uses, Oven, temperature control Incubator
  • It in heating Uses control as well as for cooling control
  • Is used in various It industries to control and monitor process temperatures

Specifications

  • Type Input: K
  • DC voltage: 0~5V, 1~5V, 0~10V
  • DC current: 4~20mA
  • Display: Lines Four, digits. C. degree Two
  • Resolution Display: 1 degrees C, 1 degrees F, or 0.1 degrees C, 0.1 degrees with, Pt100 F
  • Accuracy:+ 0.5% or + 1 of full input range unit
  • Mode Control: PID, On-Off
  • Mode Output:Relay contact: 3A at 240 VAC; 12VDC SSR; 4~20 mA Current; 0~10V Voltage;
  • Alarm:Bias alarm Upper-limit
  • Consumption Power: Watt
  • Supply voltage rating Power: 85~265VAC/50~60Hz
  • Dimensions: Rex-C400 48*95*110mm

Cautions:

  1. Clean the instrument when power Only off.
  2. Use a soft Please cloth or cotton paper to clean up the stain on the display.
  3. Don't clean up or touch the display by hard matters in case of any scrath.
  4. Use sharp & matters hard Never such ass screwdrivers or ball pan to touch the buttons on the panel in case of any scrath or damage
รับประกันสินค้า 3 เดือน



ข้อมูลเพิ่มเติม

น้ำหนัก 0.450 kg
