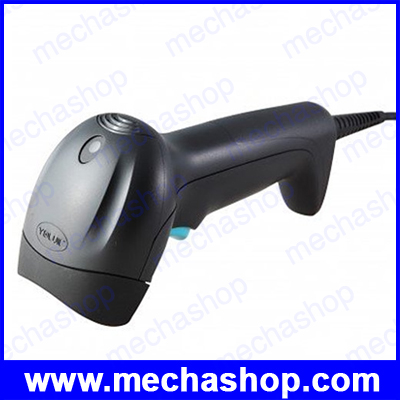

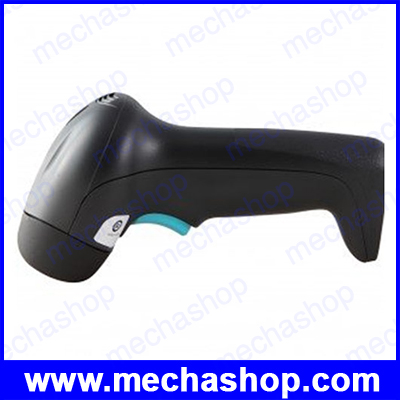

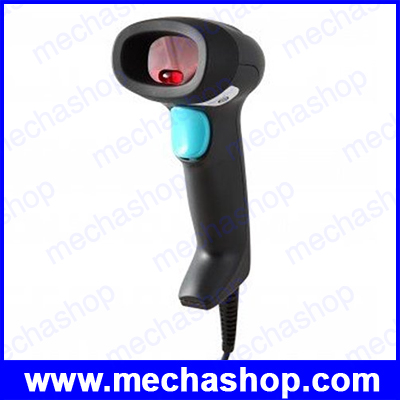

Youjie ZL2200 is a cost-effective single-line laser scanner with optimized performance. As an entry level bar code scanner targeting the low to middle segment of the AIDC markets, ZL2200 is ideal for various scanning applications like retail POS for small supermarkets and convenience stores, document scanning for office automation, and mail and parcels processing for post offices

• Scan performance at an affordable price ratio: Highly cost effective, ideal for small- to medium-sized enterprises
• Proprietary scanning platform: Revolutionary scanning platform design with pending intellectual property rights (IPR)
• Outstanding scanning performance: Provides faster scanning, larger depth of field, wider scanning angle and zero error rates.
• Ergonomic form factor design: Gun shape design comfortably fit in any hand size, reducing fatigue over long time use
• High compatibility: “Plug-and-play” with “no extra setting” enables quick integration with various office devices.

Mechanical

• Dimensions (LxWxH): 165mm x 65mm x 80mm
• Weight: 182g

Electrical

• Input Voltage: 5 VDC ± 0.25 V
• Power (typical): 700mW (140 mA@ 5V, standby)   1000mW (200 mA@ 5V, decoding)
• Electro Magnetic Compatibility: EN55022 Class B

Environmental

• Operating Temperature: 0°C – 40°C
• Storage Temperature:  -40°C – 60°C
• Humidity: 5% to 95% relative humidity, non-condensing
• Light: 0 – 100,000LUX
• Drop: Designed to withstand 1m drops
• Environmental sealing: sealed to resist airborne particulate contaminants

Performance

• Light Source: Visible Laser Diode, 650 nm ± 10 nm
• Visual Indicators: Red= laser shines, ready to scan; Green= successful decoding
• System Interface: USB
• Scan Pattern: single line
• Scan Speed: 100 scan lines per second
• Scan Angle: horizontal 55°
• Print Contrast: 20% minimum reflection difference
• Pitch, Skew: 68°, 52°
• Decode Capabilities: All standard 1D bar codes
