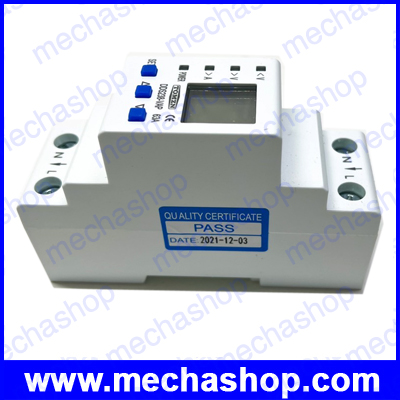

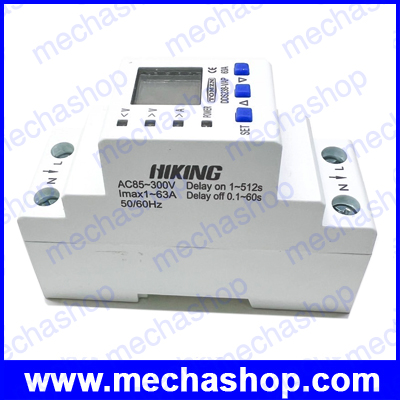

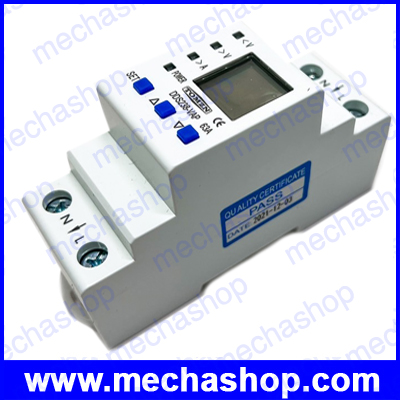

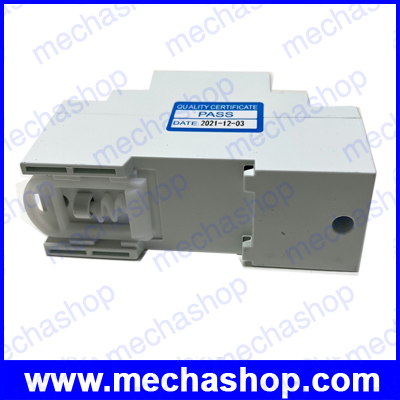

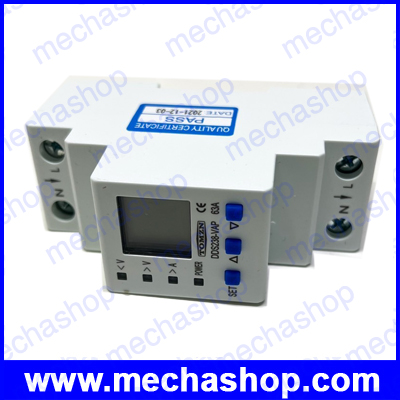

ป้องกันไฟตกไฟเกิน ป้องกันกระแสเกิน วัดค่าพลังงานได้ 63A Top input 230V Din rail adjustable over under voltage protective device protector current limit protection Voltmeter Kwh

รหัส VTP032
ราคา 690 บาท

VTP032

มีสินค้าอยู่ 4

รายละเอียดสินค้า

ป้องกันไฟตกไฟเกิน ป้องกันกระแสเกิน วัดค่าพลังงานได้ 63A Top input 230V Din rail adjustable over under voltage protective device protector current limit protection Voltmeter Kwh

>> เช็คสต๊อคสินค้า <<

.

คุณสมบัติ

  1. AC 85-300V 50/60HZ
  2. การป้องกันกระแสไฟฟ้าเกิน การป้องกันแรงดันเกิน การป้องกันแรงดันตก
  3. อุปกรณ์มีการป้องกันฟ้าผ่าสำหรับตัวเอง
  4. ความแม่นยำของแรงดันและกระแส 0.5%
  5. การใช้พลังงาน <0.5W
  6. สามารถเชื่อมต่อด้วยตนเองและเชื่อมต่อใหม่โดยอัตโนมัติ
  7. สามารถตั้งค่าเปิดและปิดการหน่วงเวลา
  8. สามารถใช้เป็นสวิตช์ปกติได้
  9. สามารถใช้เป็นสวิตช์รอบ หากผลิตภัณฑ์ไม่มีแบตเตอรี่ หากแหล่งจ่ายไฟภายนอกหมดพลังงานรอบเวลาเริ่มต้นจาก 0
  10. ความแม่นยำในการวัดแสงไฟฟ้าระดับ 1
  11. โหมดแบ็คไลท์เป็นตัวเลือกที่สะดวกสำหรับการเลือกฉากของผู้ใช้
  12. Malignant load identification limit (pure resistive load), for apartments Rental housing restrictions Fast heat Electromagnetic Kettle Electric rice cooker and other resistive high-power equipment.

รายละเอียดสินค้า

  • แรงดันไฟฟ้าที่ใช้งานได้: 85~300V
  • ค่าป้องกันแรงดันเกิน: 85-300V ( default 270V)
  • ค่าป้องกันแรงดันตก: 85-300V ( default 170V)
  • ค่าป้องกันกระแสไฟฟ้าเกิน: 1-63A (default 40A)
  • ความถี่: 50/60Hz
  • เวลาในการเปิดสวิตช์หลังจากปิดเครื่อง: 2-255V ( default 2s)
  • การใช้พลังงานวงจรแรงดันไฟฟ้า: 1W
  • ความสิ้นเปลืองพลังงาน: <1VA
  • ช่วงแสดงพลังงานที่ใช้งาน: 0~9999.9kWh
  • แรงดันไฟฟ้า/กระแส/พลังงานที่ใช้งานถูกต้อง: +0.5%
  • พลังงานที่ใช้งาน: +1% (IEC62053-21)
  • ณหภูมิในการทำงาน: -25~+70
  • อุณหภูมิการเก็บรักษา: -40~+80
  • ความชื้นสัมพัทธ์: 85%
  • Altitude: 2500m
  • สภาพแวดล้อมทางแม่เหล็กไฟฟ้า: E2
  • Mechanical life: 100000 cycles



DDS238-VAP type multi-function Protective Device is designed to measure single phase two wire AC active energy and used in overvoltage protection, under voltage protection and over-current protection . In case of over-voltage fault, under-voltage fault or over-current fault in line, this product can instantly power off the load to prevent electrical equipment from being burnt. The over-voltage, under-voltage and over-current values of this product can all be set up by yourself and can be adjusted on the basis of local practical condition .It is a long use-life product with the advantage of high stability , high over load capability , low power loss and wide working voltage range .

Product features

  • LCD display with backlight , can display total active energy (kWh) , real time current (A) , voltage(V) ,  active power (W) .
  • LCD display kWh (4 digital+1 decimal) , Bi-directional total active energy measurement ,reverse active energy measure in the total active energy
  • Product self-design has function of lighting protection
  • Overvoltage protection, under voltage protection and over-current protection can select auto-Reclosing mode or manual–Reclosing mode
  • In case of over-voltage fault, under-voltage fault or over current fault in single phase line, the product can power off the line and can automatically restore connecting the line over a time delay after voltage of the lien is recovered to normal condition.
  • In case of transient over voltage in line, the product can protect the equipment from false operation.
  • In case that the line subjects to unstable voltage or sudden power-off and power-on due to loosened connection and other fault, the product will disconnect the line.
  • When fault voltage of the line reaches the peak, the product itself will not be damaged.
  • Under over-current protection mode , you also can select Malignant load protection (Pure Resistive Load limit) which is used for Apartments and Student Dormitories  electric safety
  • You can select the circuit output cycle switch on/off mode
  • Led indication of overvoltage protection, under voltage protection and over-current protection
  • Diversified design for the protection , you can closed t any one of  overvoltage protection, under voltage protection and over-currentprotection in any time



LCD display and mode setting

Feature:

  1. AC 85-300V 50/60HZ
  2. Over current protection, over voltage protection, under voltage protection can disable one , two or three of them.
  3. the device have lightning protection for itself.
  4. Voltage and Current Accuracy 0.5%
  5. Its own power consumption <0.5W
  6. Can be manually and automatically reconnect.
  7. Can set the delay on and delay off time
  8. Can be used as a normal switch
  9. Can be used as a cycle switch. Remarks The product does not have a battery. If the external power supply is out of power, the cycle time starts from 0.
  10. Electricity metering accuracy Class 1
  11. Backlight mode is optional, convenient for user scene selection
  12. Malignant load identification limit (pure resistive load), for apartments Rental housing restrictions Fast heat Electromagnetic Kettle Electric rice cooker and other resistive high-power equipment.

Specification:

  • Input working voltage: 85~300V
  • Overvoltage protection value: 85-300V ( default 270V)
  • Under voltage protection value: 85-300V ( default 170V)
  • Over current protection value: 1-63A (default 40A)
  • Rated frequency: 50/60Hz
  • Delay in switch on after power off: 2-255V ( default 2s)
  • Voltage circuit power consumption: 1W
  • Current circuit power consumption: <1VA
  • Active energy display range: 0~9999.9kWh
  • Voltage/current/active power accurate: +0.5%
  • Active energy accurate: +1% (IEC62053-21)
  • Operating temperature: -25~+70
  • Storage temperature: -40~+80
  • Relative humidity: 85%
  • Altitude: 2500m
  • Electromagnetic Environment: E2
  • Mechanical life: 100000 cycles

Function mode and display code instruction

LCD

Code

Parameters setting

default

Max.

Min.

Marking

de

Function mode

1

7

1



De1

Mode 1







overvoltage protection, under voltage protection and over-current protection automatic switch off/on

De2

Mode 2







overvoltage protection, under voltage protection and over-current protection automatic switch off/manual switch on

De3

Mode 3







Close function of overvoltage protection, under voltage protection and over-current protection ,always keep the output load switch off

De4

Mode 4







Close function of overvoltage protection, under voltage protection and over-current protection ,always keep the output load switch on

De5

Mode 5 , unit: second

5

999

1

Close function of overvoltage protection, under voltage protection and over-current protection , keep the output load switch on /off in cycle

De6

Mode 5 , unit: minute

5

999

1

De7

Mode 5 , unit: hour

5

999

1

Bg

Backlight mode

2

2

1

Mode 1 means always lighting,mode 2 means it will lighting last 30s after you push the button . it will light out after30s if no any operation with button

SS

Delay time in load switch on after input power on

2s

255s

2s

It means switch on the output load after how many times when product input power on again

Uo

Overvoltage protection value

270V

300 V

85 V

If the value exceed the range , the LCD will display off and closed this protection function

UoH

Overvoltage recovery value

265 V

300 V

85 V

This value must be smaller than overvoltage protection value. or it will default set as overvoltage protection value -5V when you save

UL

Under voltage protection value

170 V

300 V

85 V

If the value exceed the range , the LCD will display off and closed this protection function

ULH

Under voltage recovery value

175 V

300 V

85 V

This value must be smaller than under voltage protection value. or it will default set as under voltage protection value +5V when you save

SU

overvoltage / under voltage fault judgment time



3s

60s

0.1s

It means the fault must be last how many times then it will make output load switch off when happen fault

Io

Over current  protection value

40A

63 A

1 A

If the value exceed the range , the LCD will display off and closed this protection function

Ic

Malignant load protection value (Pure Resistive Load limit)

0.5 A

5 A

0.5 A

If the value exceed the range , the LCD will display off and closed this protection function

SI

Over current fault judgment time



3s

60s

0.1s

It means the fault must be last how many times then it will make output load switch off when happen fault

SH

Delay time setting for recovery load after output load switch off protection

60s

512s

1s

It means the product must wait for how many times then make the output switch on again after happen protection

op

Delay time set for cycle switchunder function mode 5/6/7

5

999

1

The time unit is different under mode5/6/7

CL

Delay time set for cycle switch onunder function mode 5/6/7

5

999

1

The time unit is different under mode5/6/7

Er1

Last five records of protection reason



5

1



Note 1: Under voltage protection value must be smaller than Overvoltage recovery value , or it will restore factory setting

Note 2: Under the setting mode , mode 1 to 7  all can display the function mode , backlight mode ,  Delay time in load switch on after input power on , but the following display will difference according to the function mode.

Key operation instruction

  • Press and hold on the set key for 3s, entering into setting status and if go on hold the set key , it can select  different function mode . then you can set different value by pressing the up key or down key to increase or decrease the detailed value. if you hold  up key or down key at all , the value will increase or decrease at all .
  • Under the function mode , hold on the set key for 3s , it will save and exit to normal display status . if you have no any operation more than 30s  , it will also exit to normal display status . if you press the he up key or down in the meantime ,all data will restore factory setting
  • Under the normal display status , you can display voltage/current/active energy/active power step by step by  pressing the up key or down . the LCD will display step by step automatically
  • Under the function mode 2 , you can press the he up key or down in the meantime to make the output load switch on after happen protection /switch off
  • Under the function mode 1 and 2 , it the press the  down key to check the last five records of protection reason(Er1  Er5 ) .under the display firstly layer is  Er1 , the second layer number : 1 means the  overvoltage protection, 2 means under voltage protection , 3 means over-current protection , 4 means
  • Under the function mode 3 and 4 , all protection function will be closed . the product is only as normal switch for keep the output load is switch on/off
  • Under the function mode 5/6/7 , all protection function will be closed . the product is only as normal switch for keep the output load is switch on/off  in cycle .

LCD display instruction

  • normal working status LCD display

  • Under function mode setting and value setting LCD display

  • Under function mode s5/6/7  LCD display

Usage

  • The product can be installed on  35 mm din rail ,it should be install in the water proof box indoor or outdoor . The product should be install fully in accordance with connection diagram on the terminal cover, it is better to use copper as the leading wire for connection. All screws should be tightened.
  • installation dimension

  • Connection diagram

Wire connection must connect as sequence of the above 2 type diagram

Note

  • The input and output shall be corrected connected on the basis of the product marking. (Where in, the load current shall be less thanprotective current of the product. )
  • Neutral line N cannot be improperly connected and shall be reliably wired; otherwise, the protector may not work normally.
  • Before powering on, please carefully check whether the wiring is correct, whether the load matches with protective current of the product and whether the binding screw is tightened; otherwise, the product may be damaged.
  • After powering on the product, don't touch any live part to avoid electric shock.
  • This product shall be combined with micro circuit breaker to play a role of short-circuit protection; otherwise, the product may not be able to realize load limit protection in case that input or load end of the product appears short circuit.
  • As the product has automatic reset function, after the product plays the role of protection and acts, it is necessary to remove the load (electric appliance) and check the circuit; otherwise the product will be frequently connected and disconnected to the load. Finally, the product or its circuit may be burnt due to frequent overload connection and disconnection for long time.
