เครื่องวัดอัตราการไหลอัลตราโซนิค Teren-DTI-100H Standard Clamp-on type sensors, ultrasonic flow meter DN15-6000mm (สินค้า Pre-Order)
>> แจ้งความต้องการสินค้า <<
Features:
- Wide flow measurement range, from 0 m/s to 32 m/s
- Bi-directional measurement, totalize for net, positive and negative flow.
- High accuracy, better than K 1 % of velocity
- Wide pipe size range, from DN 15 to DN 6000 mm
- Suitable for all commonly used pipe materials
- Rechargeable battery with 12 hours of operation
- Built – in data logger,or SD card
- Self –explanatory user interface.
- Windows PC software for data down-load and real time data display
- Can also be deployed as a remote RTU for long –term flow monitoring application
- Easy and economical installation
- Non invasive. No pipe disturbance. no moving parts. no pressure drop.
- Ideal for both clean and opaque liquid flows.
Specifications:
- Model: Teren-DTI-100H
- Liquid Types: Any single uniform liquid which can transit ultrasonic
- Accuracy: ±1%
- Linearity: 0.5%
- Repeatability: 0.2%
- Velocity: ±32 m/s
- Pipe Size: DN15 ~ 6,000mm
- Liquid Temperature: 32~320 F (0~160 )
- Output: RS232
- SD card: Built-in data Logger can store 2000 line of data
- Extend data logger depend on SD card capacity
- Manual Totalizer: 7 digit, calibrating by Key
- Display: 4 x 16 character
- Power supply: 3 AAA Ni-MH Battery / 100~240 V AC

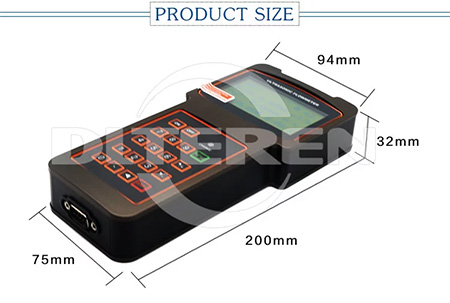

- Case Size: 201 x 90 x 30 mm
- Handset Weight: 500g
