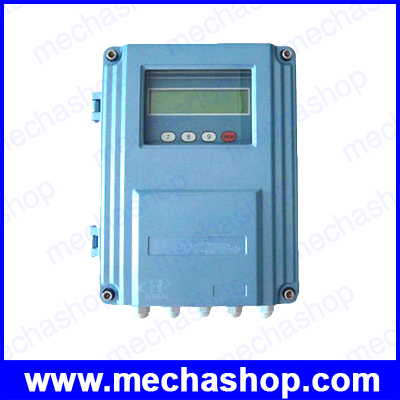

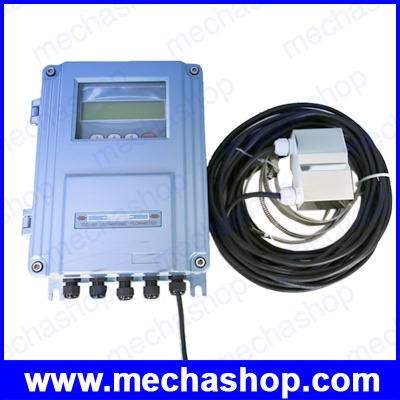

เครื่องวัดอัตราการไหลอัลตราโซนิค Teren-UFM-100F Wall mount flowmeter ultrasonic flow rate sensor water meter (สินค้า Pre-Order)

>> แจ้งความต้องการสินค้า <<

Specifications:

• Model: Teren-UFM-100F

• Liquid Types: Virtually all commonly used liquids(full pipe)

• Repeatability: Better than 0.2%

• Accuracy: Better than ±1%

• Flow Velocity: 0~ ±32m/s

• Liquid Temp: 32F~320F (0~160)

• Display: 2*20 backlit LCD

• operating: 4*4 tactile keypad

• Measuring Period: 500m/s ( twice /s)

• signal output: RS485 output; 4-20mA or 0-20mA active output;

• OCT output; RS-232, RS-485(optional)

• protection level: mainframe:IP65, transducer:IP:68

• Pipe Material:All metals, most plastics, fiber glass, etc. Allow pipe liner

• Power: AC 85—264V or DC 8VDC-36VDC

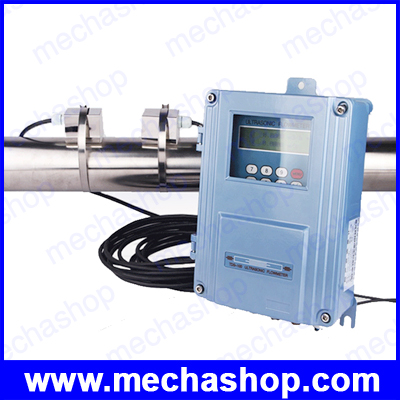

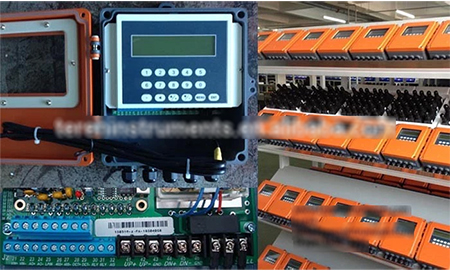

The Teren-UFM-100F Wall-Mount Clamp-on ultrasonic flow meter provides abundant capabilities for accurate liquid flow measurement from outside of a pipe.It utilized state-of-the-art technologies pm ultrasonic transmission / receiving, digital signal processing and transit-time measurement. The proprietary signal quality tracking and selfadapting techniques allow the system to optimally adapt to different pipe materials automatically.

The flow meters of the Teren-UFM-100F is carefully designed so that their operation is simple and easy. The unique lamp-on fixture design makes the installation very simple and no special skills or tools are required.

Due to the non-intrusive nature of the clamp-on technology, there is no pressure drop, no moving parts, no leaks, no risk of contamination, no risk of corrosion, no pressure dependency.





รับประกันสินค้า 6 เดือน

ข้อมูลเพิ่มเติม

น้ำหนัก	2 kg
