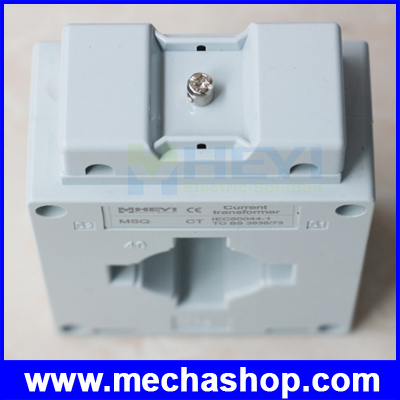

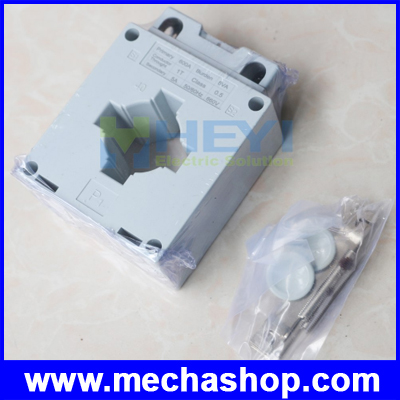

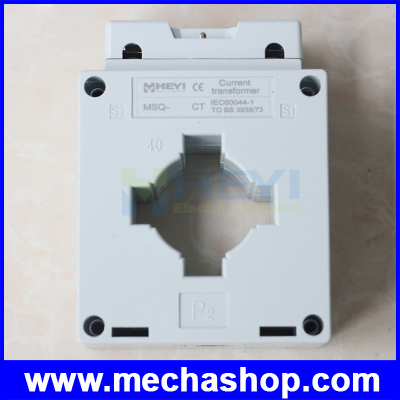

CT สำหรับ Power meter เซนเซอร์กระแสไฟฟ้า AC MSQ-30 50/5A MSQ current transformer high accuracy low voltage current transformer
>> เช็คสต๊อคสินค้า <<
MSQ Current Transformers are suitable to be applied to test, control, display and record the running of the electrical equipment, in the AC circuit with the rated voltage value below 0.72KV and the frequency of 50-60Hz, mainly used in combination with measure meters like ammeter, watt-hour meter, control relayu etc.
MSQ current transformer
- Model: MSQ-30
- Standard: IEC61869-2
- Certificate: ISO9001:2000, ISO14001:1996,CE
- Professory transformer manufacturer
Specifications
- Rated current: 50/5A
- Secondary current: 5A
- Rated voltage: 0.72kV
- Rated frequency: 50/60Hz
- Class of accuracy: 1.0
- Rated security coefficient: FS<5
- Ambient Temperature Range: -20 to +80
| Type | Current ratio(A) | Rated power(VA) | Rated | |
| Class:0.5 | Class:1 | Frequency(Hz) | ||
| MSQ-30 | 30/5 | 5 | 5 | 50/60 |
| 40/5 | 5 | 5 | 50/60 | |
| 50/5 | 5 | 5 | 50/60 | |
| 60/5 | 5 | 5 | 50/60 | |
| 75/5 | 5 | 5 | 50/60 | |
| 80/5 | 5 | 5 | 50/60 | |
| 100/5 | 5 | 5 | 50/60 | |
| 150/5 | 5 | 5 | 50/60 | |
| 200/5 | 5 | 5 | 50/60 | |
| 250/5 | 5 | 7.5 | 50/60 | |
| 300/5 | 10 | 10 | 50/60 | |
รับประกันสินค้า 1 เดือน
