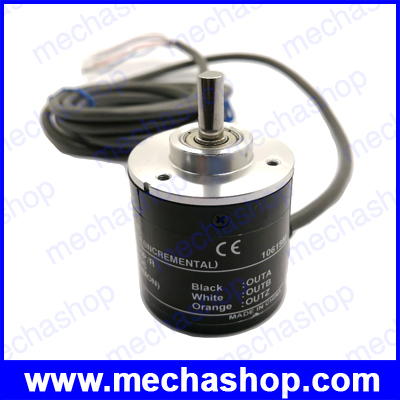

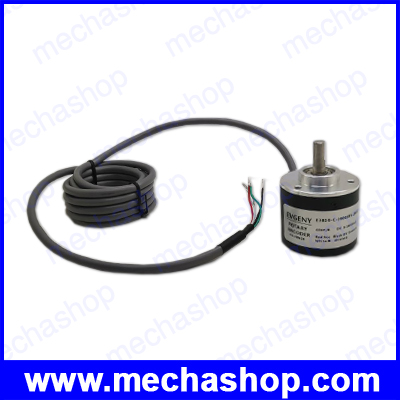

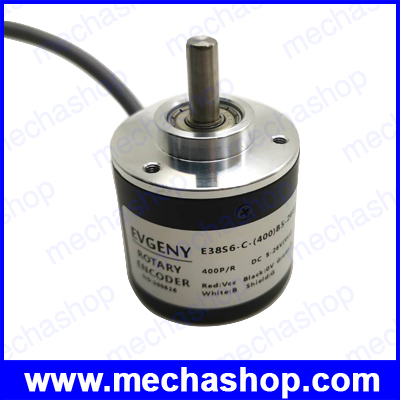

โรตารี่เอ็นโค้ดเดอร์ 400 pulse Photoelectric rotary encoder AB phase 5-24VC

รหัส ENC005
ราคา 650 บาท

ENC005

มีสินค้าอยู่ 8

รหัสสินค้า: ENC005 หมวดหมู่:

รายละเอียดสินค้า

โรตารี่เอ็นโค้ดเดอร์ 400 pulse Photoelectric rotary encoder AB phase 5-24VC

>> เช็คสต๊อคสินค้า <<

เอ็นโค้ดเดอร์ อุปกรณ์ที่ใช้ในการวัดระยะทางการเคลื่อนที่ และตำแหน่งการเคลื่อนที่ จำนวนพัลส์ 400 พัลส์
ใช้กับแรงดันไฟเลี้ยงมาตรฐาน 24VDC มีสัญญาณเอาท์พุต 2 แบบ คือ AB

ข้อมูลพร็อกซิมิตี้เซนเซอร์:

  • Performance: 400 pulses per revolution.
  • Working voltage : 24VDC
  • Maximum mechanical speed of 1000 rev / minute
  • Dimensions: the encoder body size: | Õ 38mm; shaft Ø6 x 13mm; axis platform: high-5mm Ø 20 mm; fixing holes: M3
  • screws, three mounting holes round of 30, three mounting holes in round 28; side of the outlet.
  • Output: the output circuit NPN open collector output type; pulse of A, B two-way;
  • Wiring: Vcc positive supply, 0V to A-phase, B-phase, shielded cable.
  • Degree of protection :  IP54
  • Model: 400P / R incremental rotary encoder, AB two-phase. Can identify the direction of the count pulse signal generated by the rotation of the grating disc and optocoupler.
  • Performance: 400 pulses per revolution.
  • Working voltage :5-24V, maximum mechanical speed of 1000 rev / minute
  • Dimensions: the encoder body
  • size: | Õ 38mm; shaft Ø6 x 13mm; axis platform: high-5mm Ø 20 mm; fixing holes: M3 screws, three mounting holes round of 30, three mounting holes in round 28; side of the outlet.
  • Output: the output circuit NPN open collector output type; pulse of A, B two-way;

Wiring: Vcc positive supply, 0V to A-phase, B-phase, shielded cable.

Note: AB two-phase outputs must not be connected directly to the power supply VCC, otherwise, they will burn the output transistor.
สินค้าบ้างล๊อคตำแหน่งสีของสายอาจจะไม่เหมือนกัน ให้ดูตามรายละเอียด ด้านล่างนี้ ครับ
VCC ……………RED
0V………………BLACK
A ……………….GREEN
B ……………….WHITE
G …………….shielding

รับประกันสินค้า 1 เดือน

ข้อมูลเพิ่มเติม

น้ำหนัก 0.500 kg
