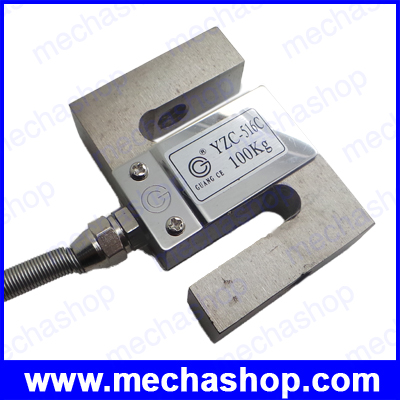

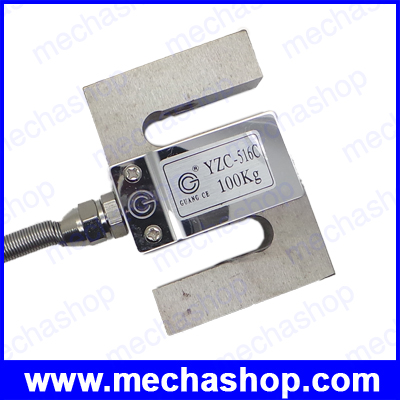

• Range: 100kg

• Overall accuracy: 0.03% F · S

• Sensitivity: 2 ± 0.1 mV / V

• Creep: ± 0.05% F · S/30min

• Nonlinear: ± 0.03% F · S

• Hysteresis error: ± 0.03% F · S

• Repeatability error: ± 0.02% F · S

• Zero temperature coefficient:± 0.03% F · S/10

• Output temperature coefficient:± 0.03% F · S/10

• Input impedance: 700 ± 15Ω

• Output Impedance: 650 ± 15Ω

• Insulation resistance: ≥ 5000 MΩ

• For the bridge voltage: Recommended 10 VDC (standard signal 12V 24V)

• Operating temperature range:-20 – +70

• Safe overload: 150% F · S

• Sealing Rating: IP67

• Material: Alloy steel (40CrNiMo)

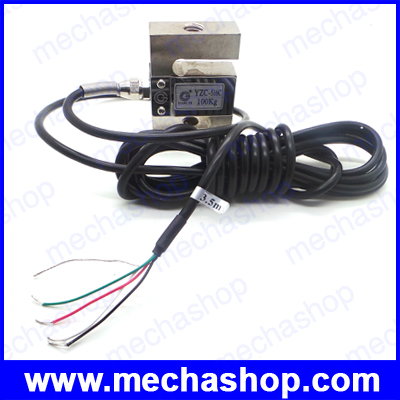

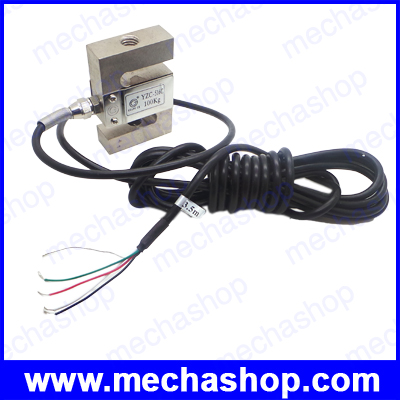

Wiring Instructions:

• Power Positive: Red Power Negative: green

• Output Positive: Yellow Output Negative: white
