รายละเอียดสินค้า

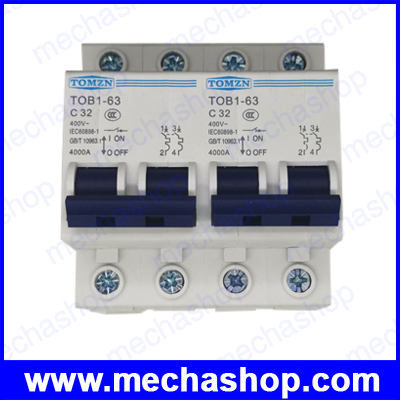

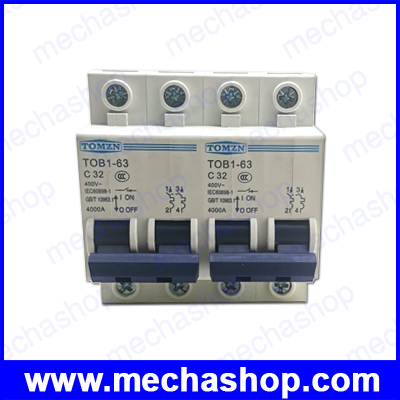

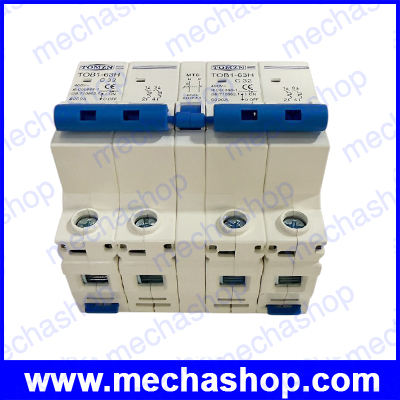

เบรกเกอร์สลับแหล่งจ่ายไฟแบบแมนวล 2P 32A MTS Dual power Manual transfer switch Circuit breaker MCB 50HZ/60HZ 400AC
>> เช็คสต๊อคสินค้า <<
DZ47 MTS manual transfer switch is suitable for two-path power supply system with AC 50 HZ/60HZ, rated working voltage 240V~400V, rated current from 6A ~ 125A. It can manually transfer power supply to reserve power or generator when common power occurring fault so as to guarantee the reliability and safe of supply power. DZ47 MTS has the protective function of overload, under-voltage, short circuit and lack phase which is especially suitable for using in the place where does not allow power supply failure, such as fire fighting, hospital, marketplace, military project, high-rise building, bank, TV station and so on.
Specifications
- Setting temperature of protective characteristics at 400°C
- Rated Voltage: 240V/415V
- Rated Current: 32A
- Electrical life: no less than 6000 operations
- Mechanical life:(O-C) on less than 20000
Characteristic Curve
Rated making and breaking capacity
Over current protective characteristic
Specifications
Dimensions
