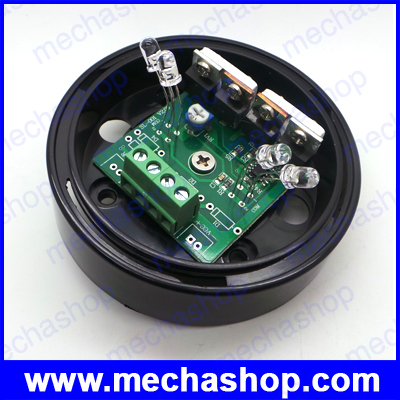

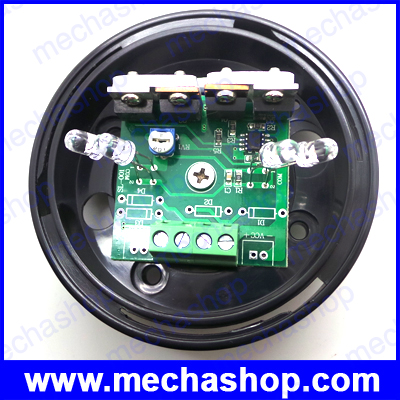

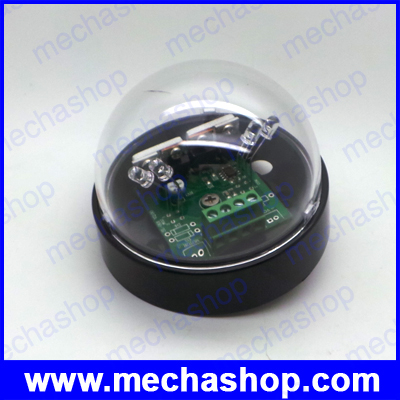

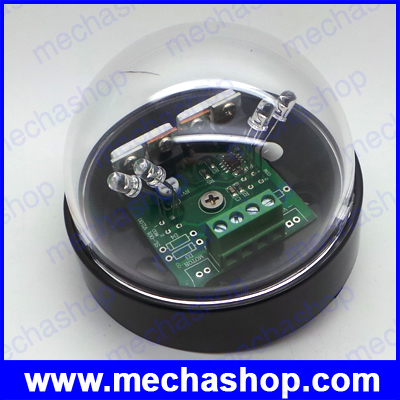

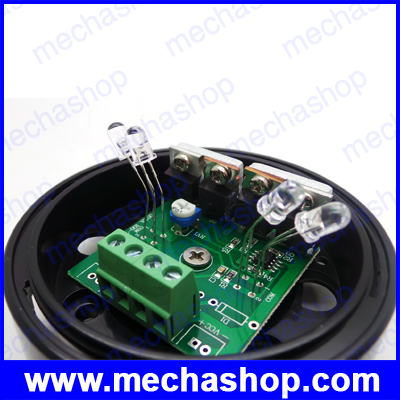

เซนเซอร์แสงควบคุม DC Motor ปรับมุมโซล่าเซลล์ตามแสงอาทิตย์ 1 แกน Single axis sun tracker with LED type sensor
Input power : Battery (1 ) 12 DCV
This solar tracking controller will drive a motor to position anything you want to follow the sun on a single axis. It can be used to position solar cells, a reflector to heat water, or anything else. The controller is mounted on the object to be steered with the sensors positioned along the rotational axis. Using most any D.C. motor up to a maximum of 12 VDC @ 10 amps, it can easily cause a solar collector, reflector or array to follow the sun through a single axis. Motors suitable for this system can move quite large loads as long as proper gearing or lead screws are used. The controller uses a differential sensing approach and can drive the motor in either direction.
Single-Axis Type (Model No. SA10033 , V5)
Our single axis solar tracker has the function of tracking the movement of the sun during the time of sunrise to sunset. It can assist your solar collector to absorb more 35%-45% of solar energy in comparison with the collector which has not installed solar tracker.
รับประกันสินค้า 1 เดือน
